Squares

(9 products)

When perfect geometry meets industrial robustness. Our workshop squares transform approximate angles and haphazard assemblies into millimetrically precise configurations, guaranteeing dimensional conformity.

From Quebec welding workshops to machining halls, equip yourself with instruments that verify, position, and hold with the accuracy required by tolerances. Because every degree of deviation compromises the quality of the assembly, and the perfect perpendicular tolerates no approximation in professional metalwork.

View as

Our recommendations

Similar Categories

Complete Guide to Choosing Your Professional Workshop Squares

Which square accuracy should you choose based on your manufacturing requirements?

The accuracy of shop squares directly determines the quality of assembly and compliance with dimensional tolerances. Standard squares offering an accuracy of ±0.5° are suitable for general structural assemblies, steel frameworks, and fabrications not requiring tight tolerances. Prices range from $9 to $40 for sizes from 6 to 24 inches in steel or aluminum with metric and imperial graduations.

Precision squares certified to ±0.1° or better are used for critical machining applications, machine tool assemblies, and aeronautical fabrications requiring strict adherence to specifications. Hardened stainless steel construction resists wear and thermal deformation. Reference surfaces are ground to ensure flatness of less than 0.05 mm.

Prices range from $60 to $229, justified by traceable certifications and a professional lifespan of 15 to 25 years.
Robust welding squares tolerate deviations of ±1°, sufficient for welded assemblies where heat causes inevitable deformations of 0.5 to 2 mm.

The heavy-duty steel construction, 5 to 10 mm thick, resists impacts, welding spatter, and intensive handling. Positioning holes facilitate clamping during operations. For final quality control and precision machining, certified squares are essential.

Polar Industrial Equipment recommends selection based on the tolerances specified in technical drawings and customer acceptance criteria.

Fixed versus adjustable squares: understanding the advantages of each type

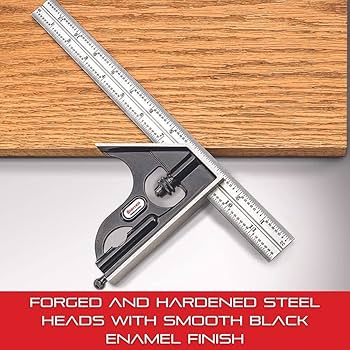

Fixed 90° right-angle workshop squares offer maximum rigidity and consistent accuracy for repetitive checks and standard assemblies. The unibody construction eliminates joints prone to wear and misalignment. Combination squares integrate graduated rules from 6 to 24 inches, allowing simultaneous linear measurements and angular checks.

Priced from $9 to $80, depending on size and construction quality. Adjustable squares allow angle adjustments from 0 to 180° with 1° graduations for complex geometries and non-orthogonal assemblies. The screw or lever locking mechanism maintains the selected angle with an accuracy of ±0.5° after tightening. Applications include pitched frameworks, oblique assemblies, and checking variable chamfers according to specifications.

Priced from $35 to $150, depending on the robustness and precision of the adjustment mechanism. Magnetic squares integrate powerful neodymium magnets, maintaining positioning on ferrous surfaces without additional clamps. This frees up the operator's hands, allowing simultaneous manipulation of parts and welding or marking tools.

Magnetic forces range from 15 to 50 kg depending on size, supporting assemblies up to moderate weights. For series production with repetitive angles, fixed squares offer speed and consistency. For prototypes and varied single parts, adjustable squares justify the investment with their versatility.

Polar Industrial Equipment recommends acquiring both types for comprehensive workshop needs.

Construction materials: stainless steel, aluminum, and surface treatments

304 or 316 stainless steel workshop squares offer superior corrosion resistance for wet workshops and aggressive chemical environments. The high hardness of 58 to 62 HRC after heat treatment prevents deformation under repeated loads and impacts. Polished surfaces facilitate cleaning and the removal of sticky welding spatter. The 40 to 60% higher prices are justified by a lifespan of 20 to 30 years without oxidation or dimensional degradation.

Anodized aluminum squares combine lightness and corrosion resistance for mobile applications and frequent handling. The 60 to 70% reduced weight compared to steel facilitates repeated positioning and adjustments without operator fatigue. Hard anodization creates a protective surface that increases abrasion resistance. Rigidity limitations restrict use to dimensions under 12 inches and light loads, avoiding bending.

Carbon steel squares with black nitride coating offer exceptional surface hardness of 70 HRC, resisting scratches and intensive wear. The matte black finish eliminates reflections and facilitates reading graduations in varying workshop lighting. Moderate prices of 15 to 100 dollars depending on the dimensions represent an optimal compromise between robustness and economy. For standard dry environments, carbon steel is sufficient. For wet or outdoor workshops, stainless steel is essential.

Polar Industrial Equipment stocks various materials for adaptation according to specific environmental constraints.

Professional applications: welding, machining, and metal assembly

Metal welders require robust 6- to 12-inch workshop squares, resistant to spatter and heat, for positioning tubes, profiles, and sheets during assembly. Magnetic squares free up hands for simultaneous torch and rod manipulation.

Angles are maintained during cooling, preventing thermal deformations that compromise the final geometry. Post-weld verification confirms adherence to the perpendicularity specified on the technical drawings.

Machinists use certified precision squares for mounting parts on milling machine tables and lathes. Exact alignment of reference surfaces ensures machining perpendicular to the machine axes. Final dimensional control verifies conformity to typical precision machining tolerances of ±0.1 mm. Combination squares are used with gauge blocks and dial indicators for complex multi-axis setups.

Metal structure assemblers require large 18- to 36-inch squares for commercial frameworks, stairs, and railings. Perpendicularity verification between columns and beams is done according to building codes requiring perfect right angles. Squares also serve as cutting guides for cutting profiles at 90° before assembly. Metric and imperial graduations accommodate plans in various systems.

Polar Industrial Equipment supplies comprehensive ranges according to trade specialties for maximum efficiency in the workshop and on the job site.

Maintenance and accuracy verification techniques for squares

Maintaining workshop squares preserves precision and extends operational life. Clean reference surfaces after each use, removing weld spatter, metal filings, and sticky residues with a degreasing solvent and a soft brush.

Avoid abrasive tools that can cause scratches, compromising the reference flatness. A light application of protective oil on carbon steel squares prevents oxidation during prolonged storage.

Periodically check angular accuracy using the flip method: place the square against a flat reference surface, draw a line, flip the square, and draw a second line. The gap between the lines reveals the square's angular error. The maximum acceptable error is 0.2 mm over a 300 mm length for standard squares and 0.05 mm for precision squares. Squares exceeding tolerances require immediate replacement, as rectification is impossible on hardened tools.

Store squares suspended or in a vertical position, avoiding stacking, which causes permanent deformation due to weight. Separate them with cloths or foam to prevent impact between reference edges. Certified precision squares require annual recalibration by an accredited laboratory, maintaining traceability for regulated industries. Typical lifespan varies from 10 to 30 years depending on initial quality and maintenance rigor.

Polar Industrial Equipment offers replacement squares and verification advice for maintaining workshop quality standards.
Chalk Lines And Powder Calipers Welding Protection Vices Measuring Tools Angle Grinder Safety Equipments Power Tool Wall Cabinet

We answer your questions about workshop squares

Which workshop square is best suited for professional welding assemblies?

For professional welding assemblies, choose robust magnetic squares measuring 6 to 12 inches, made of thick steel resistant to spatter and heat.

A magnetic holding force of 25 to 50 kg keeps parts positioned without clamps during welding, freeing the operator’s hands.

Recommended specifications:

  • Type: Magnetic with pre-set 45°, 90°, and 135° angles
  • Material: Heavy-duty steel, 5–10 mm thick, resistant to impact and heat
  • Holding force: 25–50 kg, supporting moderately weighted parts
  • Size: 6–12 inches, covering most assembly needs

Squares that combine positioning and welding functions improve versatility. Designs without sharp edges make spatter cleanup easier. Post-weld verification with a precision square ensures tolerances are maintained after cooling.

Équipement Industriel Polar recommends owning multiple sizes to handle different assemblies simultaneously.

Do magnetic squares work on aluminum and stainless steel?

No. Magnetic squares work only on ferromagnetic metals such as carbon steel and low-alloy steel. Aluminum and austenitic stainless steels (304, 316) are non-magnetic and require conventional clamps or fixtures to hold parts during assembly.

Magnetic compatibility by material:

  • Carbon steel: Excellent, maximum magnetic force
  • Low-alloy steel: Good, slightly reduced force
  • Austenitic stainless steel (304, 316): Non-magnetic, incompatible
  • Aluminum and alloys: Non-magnetic, incompatible

For aluminum or stainless assemblies, use conventional squares with heavy-duty clamps ranging from 6 to 24 inches to maintain uniform pressure.

Alternatively, modular welding tables with fixture holes allow stable positioning of non-ferrous parts. Always test magnetism with a simple magnet before relying on magnetic squares for critical projects.

What is the difference between a welding square and a combination square?

Welding squares are specifically designed to withstand spatter, heat, and intensive handling during metal assembly.

They are made from thick steel, typically 5 to 10 mm, often include mounting holes, and commonly use magnetic configurations.

Angular tolerance ranges from ±0.5° to ±1°, which is adequate for welded assemblies where thermal distortion is unavoidable.

Key differences:

  • Welding square: Heavy-duty, magnetic, mounting holes, tolerance up to ±1°
  • Combination square: Integrated graduated rule, precision up to ±0.1°, allows linear measurements
  • Welding use: Positioning during assembly and welding
  • Combination use: Dimensional verification, layout, quality control

Combination squares include graduated rules from 6 to 24 inches, enabling linear measurements without additional tools. Their lighter construction makes them unsuitable for intensive welding environments.

For fully equipped workshops, owning both types is recommended: welding squares for assembly and combination squares for final verification.

Équipement Industriel Polar advises selecting tools based on the dominant phase of your manufacturing process.

How can I check the accuracy of my workshop square?

Check accuracy using the flip test method. Place the square against a guaranteed flat reference surface and draw a fine line along the vertical edge.

Flip the square 180° and draw a second line adjacent to the first. The distance between the two lines reveals twice the angular error of the square.

Complete verification procedure:

  • Use a precision flat reference surface such as a machine table or surface plate
  • Draw the first line with a fine-point pencil or scribe
  • Flip the square 180° and draw a second line directly next to the first
  • Measure deviation over 300 mm: maximum 0.2 mm for standard squares, 0.05 mm for precision squares

Squares exceeding tolerance limits must be replaced immediately, as hardened tools cannot be re-machined accurately. Annual verification is recommended for squares used daily in production.

Certified precision squares require recalibration by an accredited laboratory to maintain traceability. Proper storage and careful handling help prevent premature loss of accuracy.

What warranty is offered on workshop squares?

Workshop squares are covered by manufacturer warranties ranging from 30 days to 1 year depending on the brand, covering defects in materials and workmanship only.

Dimensional accuracy is verified at manufacturing but is not guaranteed against normal wear from intensive use or repeated impacts.

Typical warranty coverage:

  • Manufacturing defects: Cracks, faulty welds, initial deformation
  • Graduations: Legibility and accuracy at delivery
  • Exclusions: Normal wear, impact damage, loss of accuracy from use
  • Équipement Industriel Polar policy: 30-day return on unused products

For warranty claims, keep your proof of purchase and contact our team at 1-800-567-3206 to confirm eligibility. Squares found defective upon unpacking are replaced at no cost.

Damage caused by improper use, drops, or overload is excluded. Free technical support is available for selection guidance, accuracy verification, and maintenance practices that maximize operational lifespan.
