CP74 Series, a range of 1/4" and 6mm straight grinders with spindle lock system that allows high application coverage in body shops and the MRO market.

Designed for bodywork and maintenance applications, the CP74 series, with its spindle lock system, allows the operator to easily change carbide cutters with a single wrench. Thanks to its different heads (short and long straight, 120°, 90°), the CP74 series offers a wide range of applications. Its gripping surface and composite housing provide optimal user comfort in everyday use. This model is part of the CP74 series, consisting of 7 models: 2 short straight, 2 long straight, 120°, 90° and a kit. The country of origin is TW. The customs tariff is 84671110.

Technical specifications

Imperial Metric

Height (H)

1 mm

Length (L)

176 mm

Width (L)

1 mm

Weight

0.5 kg

Maximum power

250 W

Free speed

28,000 rpm

Air consumption at free speed

1.3 l/s

Air consumption under load

1 l/s

Air Inlet Thread Size (in)

1/4

Air inlet thread type

TNP

Maximum dynamic air working pressure

6.3 bars

Minimum pipe diameter (16 foot pipe length)

0.38 in

Minimum pipe diameter (5 m pipe length)

10 mm

Sound power

87.2 dB(A)

Sound pressure

76.2 dB(A)

Vibrational uncertainty-K

1 m/s²

Vibration

3.6 m/s²

Angle type

Right

Maximum clamp capacity

1/4 (6.4 mm)

Exhaust

Back

Rotary input

No

Spindle lock

Yes

Starting system

Safety lever

CP7405

8941074050

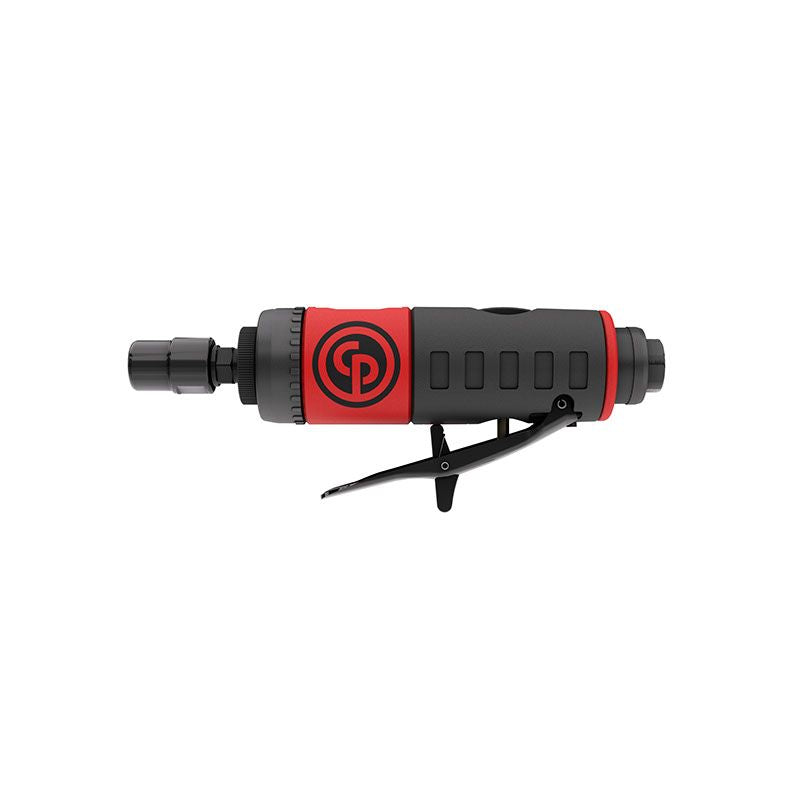

1/4" (6 mm) PNEUMATIC STRAIGHT GRINDER

Dimensions 23.3 x 10 x 6.4 cm

Weight 772 g

---
