CP74 Series, a range of 1/4" and 6mm straight grinders with spindle lock system that allows high application coverage in body shops and the MRO market.

Designed for bodywork and maintenance applications, the CP74 series, with its spindle lock system, allows the operator to easily change carbide cutters with a single wrench. Thanks to its different heads (short and long straight, 120°, 90°), the CP74 series offers a wide range of applications. Its gripping surface and composite housing provide optimal user comfort in everyday use. This model is part of the CP74 series, consisting of 7 models: 2 short straight, 2 long straight, 120°, 90° and a kit. The country of origin is TW. The customs tariff is 84671110.

Technical specifications

Imperial Metric

Height and weight

Length (L)

195 mm

Weight

0.62 kg

Power supply and battery

Maximum power

250 W

Speed

Free speed

23,000 rpm

Air consumption at free speed (Normo)

9.4 1/sNl

Air consumption at free speed

1.3 l/s

Air information

Air consumption under load

1 l/s

Air Inlet Thread Size (in)

1/4

Air inlet thread type

TNP

Maximum dynamic air working pressure

6.3 bars

Minimum pipe diameter (16 foot pipe length)

0.38 in

Minimum pipe diameter (5 m pipe length)

10 mm

Noise and vibrations

Sound power

89.6 dB(A)

Sound pressure

78.6 dB(A)

Vibrational uncertainty-K

0.9 m/s²

Vibration

4.3 m/s²

Tightening strategies

Angle type

120°

Design and functions

Maximum clamp capacity

1/4 (6.35 mm)

Exhaust

Back

Rotary input

No

Spindle lock

Yes

Starting system

Safety lever

CP7408

8941074080

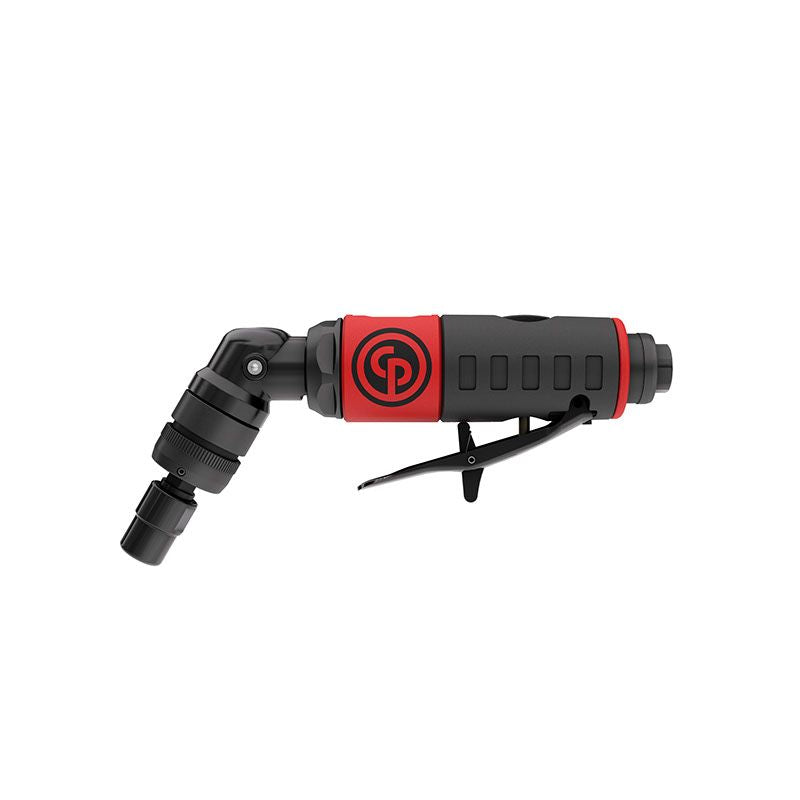

1/4" (6 mm) PNEUMATIC STRAIGHT GRINDER - ANGLE

Dimensions 23.1 x 10 x 6.6 cm

Weight 896 g

---
