Chicago pneumatic | SKU:
CP-7406

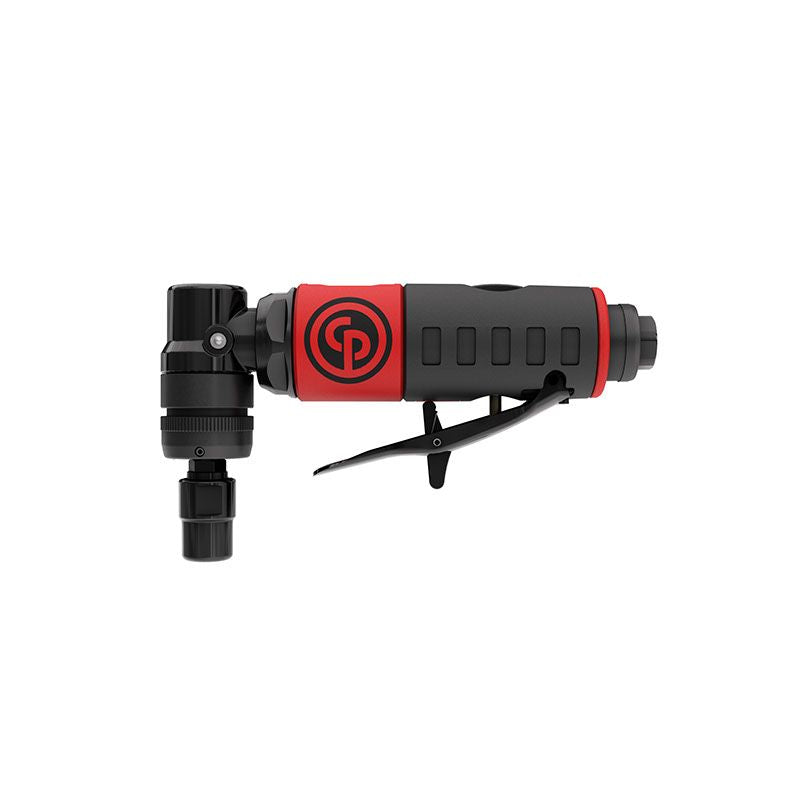

DIE GRINDER 1/4'' CP RIGHT ANGLE PG93
Regular price
$177.35
Unit price
/
Unavailable
Shipping calculated at checkout.
DIE GRINDER 1/4'' CP RIGHT ANGLE PG93 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
DIE GRINDER 1/4'' CP RIGHT ANGLE PG93
Regular price
$177.35
Unit price
/
Unavailable
Description
Description
CP7405/06/08/10/11/12 Series - Straight Grinders
CP74 Series, a range of 1/4" and 6mm straight grinders with spindle lock system that allows high application coverage in body shops and the MRO market.
General overview
Designed for bodywork and maintenance applications, the CP74 series, with its spindle lock system, allows the operator to easily change carbide cutters with a single wrench. Thanks to its different heads (short and long straight, 120°, 90°), the CP74 series offers a wide range of applications. Its gripping surface and composite housing provide optimal user comfort on a daily basis. This model is part of the CP74 series, consisting of 7 models: 2 short straight, 2 long straight, 120°, 90° and a kit.
Changing a carbide cutter has never been easier!
Designed for bodywork and maintenance applications, the CP74 series, with its spindle lock system, allows the operator to easily change carbide cutters with a single wrench. Thanks to its different heads (short and long straight, 120°, 90°), the CP74 series offers a wide range of applications. Its gripping surface and composite housing provide optimal user comfort in everyday use. This model is part of the CP74 series, consisting of 7 models: 2 short straight, 2 long straight, 120°, 90° and a kit. The country of origin is TW. The customs tariff is 84671110.
Technical specifications
Height and weight
Length (L)
163 mm
Weight
0.6 kg
Power supply and battery
Maximum power
250 W
Speed
Free speed
23,000 rpm
Air consumption at free speed (Normo)
9 1/sNl
Air consumption at free speed
1.3 l/s
Air information
Air consumption under load
1 l/s
Air Inlet Thread Size (in)
1/4
Air inlet thread type
TNP
Maximum dynamic air working pressure
6.3 bars
Minimum pipe diameter (16 foot pipe length)
0.38 in
Minimum pipe diameter (5 m pipe length)
10 mm
Noise and vibrations
Sound power
89.1 dB(A)
Sound pressure
78.1 dB(A)
Vibrational uncertainty-K
1.3 m/s²
Vibration
5.4 m/s²
Tightening strategies
Angle type
90°
Design and functions
Maximum clamp capacity
1/4 (6.35 mm)
Exhaust
Back
Rotary input
No
Spindle lock
Yes
Starting system
Safety lever
Benefits
Easily interchangeable cutters allowing the operator to use a single wrench thanks to the new spindle locking system.
Good surface grip prevents the tool from slipping once in the operator's hand thanks to the handle material (TPR) and its ergonomics.
High application coverage thanks to the multitude of heads (short and long straight, 120°, 90°)
Less heat transfer between the motor and the sleeve thanks to the composite housing
