Chicago pneumatic | SKU:
CP-7150

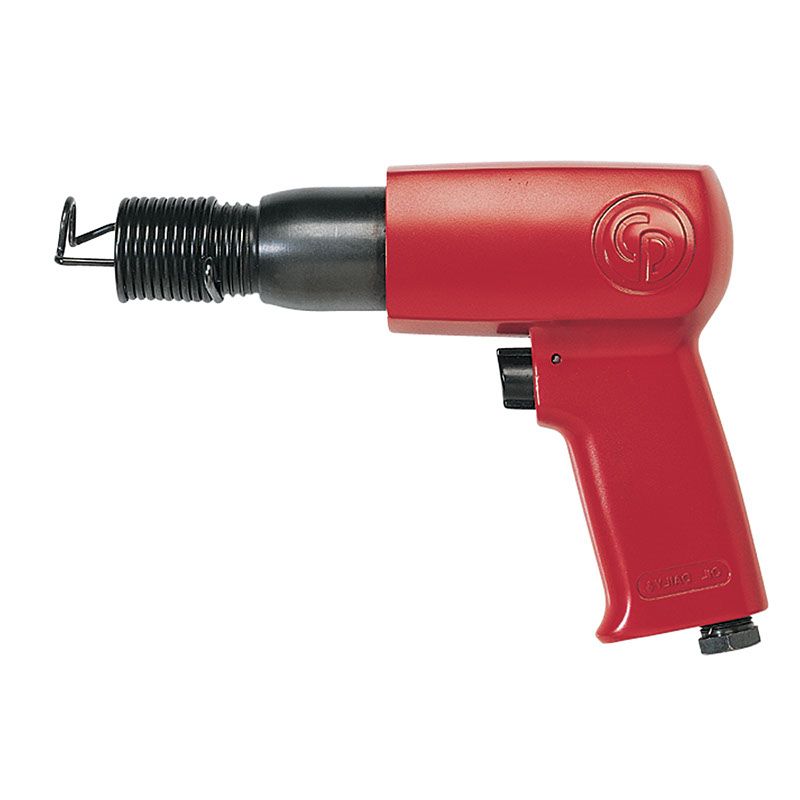

CP7150 AIR HAMMER
Regular price
$125.65
Unit price
/
Unavailable
Shipping calculated at checkout.
CP7150 AIR HAMMER is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
CP7150 AIR HAMMER
Regular price
$125.65
Unit price
/
Unavailable
Description
Description
CP7111/CP7150 Series - Hammers
For operators working in maintenance or body shop applications who are looking for pistol hammers, the CP7111 Series provides the pistol hammer you need.
Enjoy this pistol hammer, designed for general maintenance and bodywork. This model belongs to the CP7110 series, which consists of 6 models: 3 pistol hammers (a 10.2 mm short round hammer, a 10.2 mm short hex shank, and a 10.2 mm long round hammer) and 3 kits (a 10.2 mm short round hammer, a 10.2 mm hex shank, and a 10.2 mm long round hammer).
Technical specifications
Bore diameter
19 mm
Length (L)
225 mm
Stroke
89 mm
Weight
2.2 kg
Air consumption under load
11 l/s
Air Inlet Thread Size (in)
1/4
Maximum dynamic air working pressure
6.3 bars
Minimum pipe diameter (16 foot pipe length)
0.38 in
Minimum pipe diameter (5 m pipe length)
10 mm
Beats per minute
2300
Chisel rod
Round
Chisel Shank Diameter (in)
0.401
Chisel shank diameter (mm)
10.2
Energy
9.5 days
Maximum rivet size (in)
5/16
Maximum rivet size (mm)
7.9
Maximum Steel Rivet Size (in)
1/4
Maximum size of steel rivets (mm)
6.4
Starting system
Triggering
Sound power
110 dB(A)
Sound pressure
99 dB(A)
Vibrational uncertainty-K
7.3 m/s²
Vibration
15.6 m/s²
Benefits
Versatile and cost-effective
Fast cutting action
