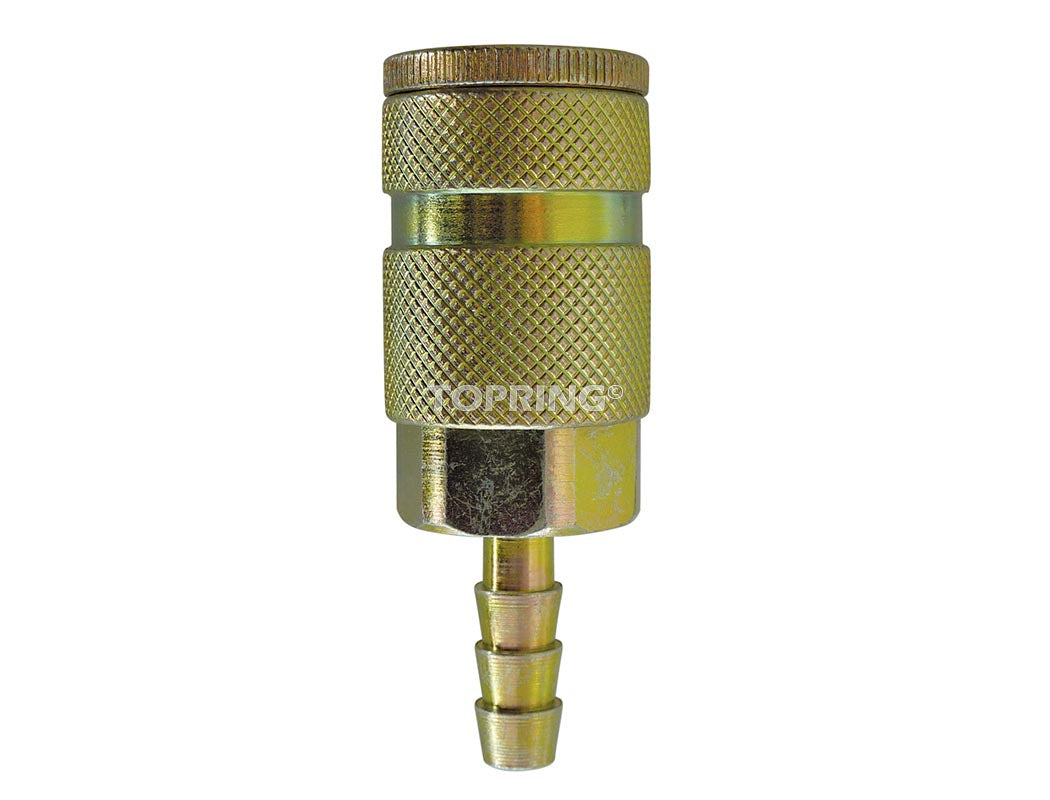

TOPRING 23.762 MAXQUIK BARBED COUPLER 3/8"

Technical specifications and certifications

• Barbed: 3/8 DI
• Maximum operating pressure: 250 PSI
• Operating temperature: -40 to 107°C
• Airflow: 28 SCFM at 100 PSI at inlet with pressure drop

Materials) :
• Body: Zinc plated steel
• Lock nut: Zinc plated steel
• Socket: Zinc plated steel
• Valve: Zinc plated steel
• Spring: Nickel-plated steel
•Lock mechanism: Nickel-plated steel balls
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept ARO 210 type ends
• Compact and economical models
• Efficient and safe connection with four-ball locking device
• Guard device to prevent accidental disconnections
• Socket manually operated to connect or disconnect the plug

Applications

• Air tools (staplers, nailers, screwdrivers and others)
