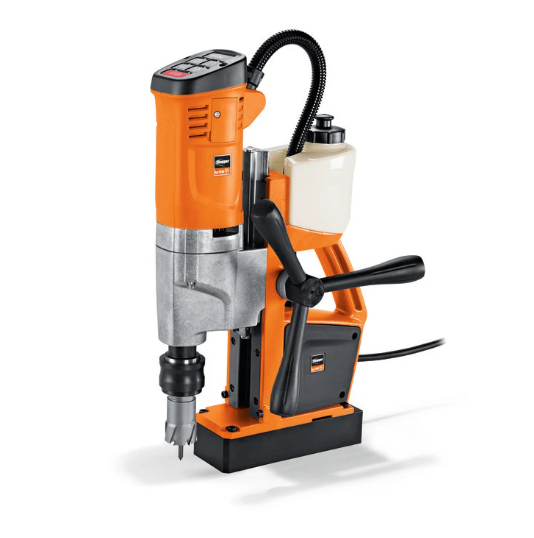

FEIN UNIVERSAL MAGNETIC DRILL 1-3/8 in. JMU137-2QW 72705861120
Regular price
$2,846.00
Unit price
/
Unavailable
Shipping calculated at checkout.
FEIN UNIVERSAL MAGNETIC DRILL 1-3/8 in. JMU137-2QW 72705861120 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Benefits
- Extremely wear-resistant machine design with motor cord protection sheath for use in harsh conditions in industry and trade.
- Extremely durable construction thanks to a solid design with hinged motor cord protection sheath. Designed for use in harsh conditions in industry and crafts.
- Optimal power-to-weight ratio thanks to a compact, weight-optimized design and a FEIN 1100 W HIGH POWER motor with tachometer control, ensuring high speed stability for reliable and cost-effective work.
- Small size with 2-speed reducer for twist drill drilling.
- Simple and unconfusing user concept, clearly visible to the user.
- The convenient display of the magnetic holding force helps to set up the machine securely.
- High magnetic force.
- Tilt sensor.
- Additional magnetic switch in the drill stand.
- The integrated lubricant reservoir provides longer life for core drills.
- Reversible right/left feed wheel.
- Memory Function for memorizing the rotation speed.
Technical description
Technical characteristics
Power consumption
1,100 W
Useful power
550 W
Fitting
3/4 in Weldon
Max. diameter of carbide cutter
1-3/8 [35] in[mm]
Max. diameter of HSS cutter
1-3/8 [35] in[mm]
Max. drilling depth of the cutter
2 [50] in[mm]
Twist drill Ø max.
5/8 [16] in[mm]
Tapping
9/16 in [M 14]
Max. Ø for chamfering
1-1/4 [31] in[mm]
Max. bore diameter
5/8 [16] in[mm]
Changing the cutter
tool-free
Race
5-5/16 [135] in[mm]
Total lifting stroke
10-1/4 [260] in[mm]
Magnetic force
2136 [9,500] lbs[N]
Cable with plug
13.1 [4] ft[m]
Weight according to EPTA
24.47 [11.10] lbs[kg]
Vibration and sound emission values
Sound level LpA
83.2 dB
Uncertainty of the measurement value KpA
5 dB
Sound power level LWA
96.2 dB
Uncertainty of the KWA measurement value
5 dB
Peak sound value LpCpeak
96.8 dB
Uncertainty of the KpCpeak measurement value
5 dB
Vibration value 1 αhv 3 ways
αh,D <2.5 m/s²
Uncertainty of the measurement value Kα
1.5 m/s²
