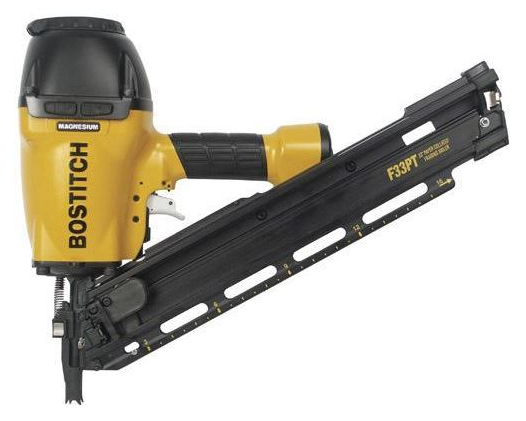

BOSTICH FRAMING NAILER

TECHNICAL SHEET :
Depth adjustment:
Yes
Dry Fire Lock:
TRUE
Length of the binding:
2 – 3 ½”
Fastening type / Caliber::
30 degree paper tape
Firing/Activation Mode:
Sequential with contact trigger included
Jam Clearance:
Yes
Store angle:
30 degrees
Charger capacity:
80
Loading the magazine:
Lower load
Operating pressure:
80 - 120 psi
Energy source:
Pneumatic
Tool height:
14 in
Tool length:
18 in
Tool weight:
7.9 pounds
USES:
Management
Coating
Cladding
Installation of metal connectors
Farms
Bridge
From wood to masonry
Engineered wood
Strapping
Fencing
Exterior decks
Two nailers in one: includes two quick-change tips to convert the tool to framing or metal connector applications
Patented push-button adjustable depth guide secures nails at desired depths
Lightweight magnesium design for durability
Adjustable rafter hook allows users to hang the tool on rafters and joists
Drives 1 ½" STRAPSHOT™ fasteners and all other 1-1/2" and 2-1/2" metal connector nails (0.131" to 0.162" diameter)

BOS-F33PT
