For operators working in maintenance or body shop applications who are looking for powerful and durable pistol hammers, the CP717 Series offers the rugged pistol hammer you need.

Enjoy this robust pistol-grip hammer, designed for general maintenance and bodywork. This model belongs to the CP717 series, which consists of two models: the tool itself and the kit.

Technical specifications

Imperial Metric

Bore diameter

19 mm

Length (L)

190 mm

Stroke

68 mm

Weight

2.15 kg

Air consumption under load

5.9 l/s

Air Inlet Thread Size (in)

1/4

Maximum dynamic air working pressure

6.3 bars

Minimum pipe diameter (16 foot pipe length)

0.38 in

Minimum pipe diameter (5 m pipe length)

10 mm

Beats per minute

1800

Chisel rod

Round

Chisel Shank Diameter (in)

0.498

Chisel shank diameter (mm)

12.7

Energy

7.3 J

Maximum rivet size (in)

1/4

Maximum rivet size (mm)

6.4

Maximum Steel Rivet Size (in)

3/16

Maximum size of steel rivets (mm)

4.8

Starting system

Triggering

Sound power

106 dB(A)

Sound pressure

95 dB(A)

Vibrational uncertainty-K

2.9 m/s²

Vibration

8.6 m/s²

CP717

T020120

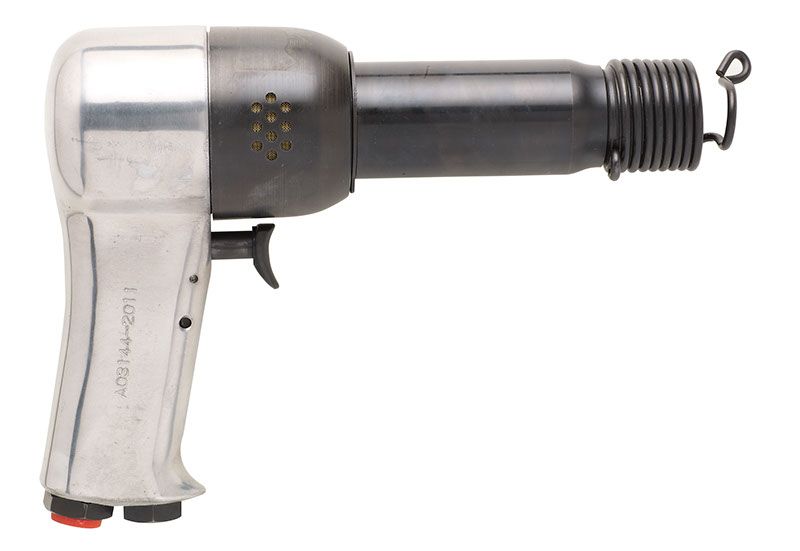

0.498" (12.7 mm) ROUND AIR HAMMER

Dimensions 25.4 x 1.9 x 7.1 cm

Weight 2.49 kg

---
