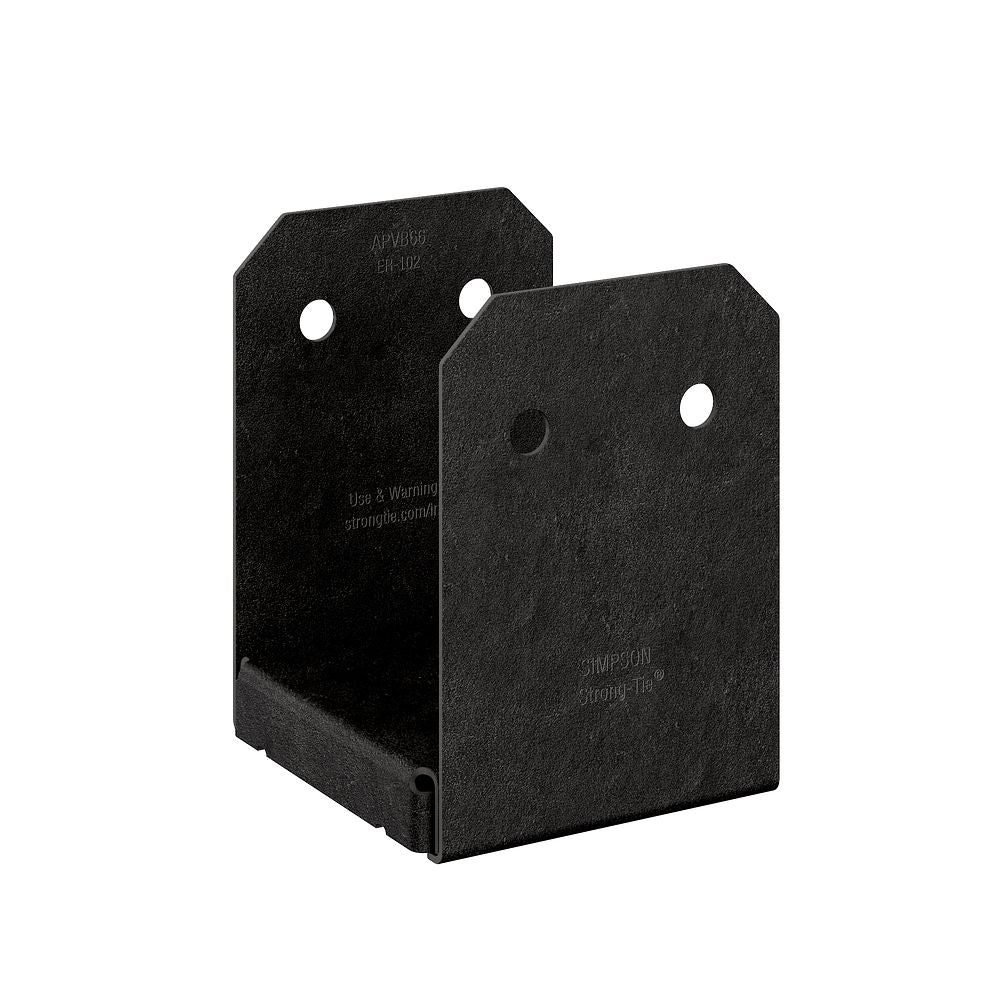

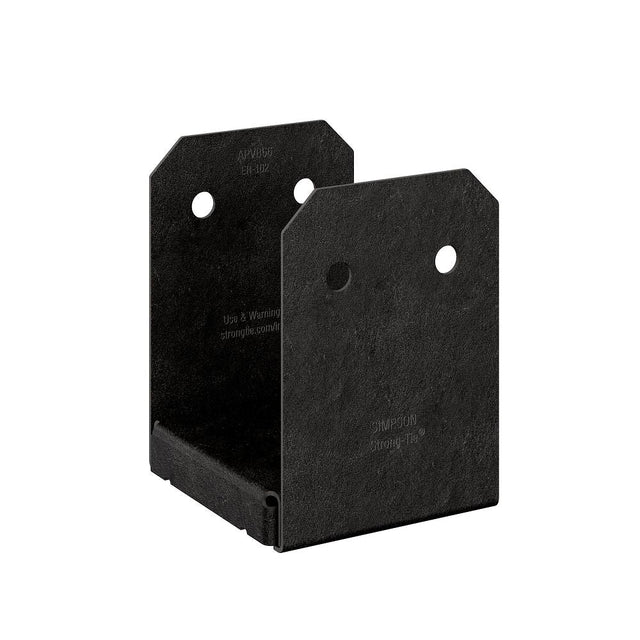

Adjustable Post Base for 6x6 Posts Simpson Strong-Tie APVB66

What is included with the APVB66 post base

The Simpson Strong-Tie APVB66 adjustable base is sold on its own. The structural screws and hex-head washers needed for installation are sold separately.

Included in your order:

• 1 APVB66 adjustable base for a 6x6 post: adjustment slots, ZMAX galvanization with a black finish and a 2.5 cm standoff under the post.

Benefits of the APVB66 base

• Protection against rot: a 2.5 cm gap separates the post from the concrete. It helps prevent rot at the post end.
• Corrosion resistance: ZMAX galvanization with a black powder coat suits outdoor applications and treated wood.
• Adjustable position: the adjustment slots make it easier to position the post on the base.
• Clean look: the Avant collection stands out with straight lines and chamfered edges.

Recommended complementary accessories

To install your post base, plan for fastening hardware and tools for concrete. Confirm the required fasteners with the Simpson Strong-Tie data sheet and the building code.

• Titen HD 5/8 in. x 5 in. heavy-duty screw anchor (THDB62500H), sold separately. A screw anchor for concrete, with the length chosen according to the data sheet.
• DeWalt AC200+ concrete anchoring adhesive 9.5 oz, sold separately. For adhesive anchors in concrete.
• DeWalt DCD805B 20V MAX XR hammer drill, sold separately. For drilling concrete with a suitable bit.
• Simpson Strong-Tie CPT66Z 6x6 concealed post base. Another style of base for a 6x6 post, if you prefer a concealed base.

Installing the APVB66 post base

Before installing, validate your project.

1. Validate the project: check the building code. For a load-bearing structure, consult an engineer.
2. Prepare the concrete: the concrete must be hardened, clean and dust-free before drilling.
3. Position the base: center the base under the 6x6 post and use the slots to adjust it.
4. Fasten: use the structural screws and hex-head washers recommended by the manufacturer, sold separately.

Regular maintenance

A regular check is enough to keep the base in good shape.

To check:

• The condition of the fasteners and the base.
• The 2.5 cm gap under the post, which must stay clear (leaves, dirt, ice).
• The black coating, to spot any scratches.

Cleaning and maintenance

Clean the base without abrasive products.

1. Rinsing: remove dirt and debris with clean water.
2. Wiping: use a soft cloth. Avoid wire brushes, which would damage the coating.

Safety precautions

For your safety:

• Do not modify the base: cutting or drilling the base can damage the coating and weaken the part.
• Respect the intended loads: follow the manufacturer's guidance and your engineer's advice for load-bearing structures.
• Protect yourself when drilling concrete: wear safety glasses and a dust mask.

Storage tips

Storage before installation:

• Store the base in a dry place, away from moisture.
• Keep it in its packaging to protect the black coating.

Équipement Industriel Polar warranty coverage

Your purchase from Équipement Industriel Polar is covered by our 30-day satisfaction or money-back guarantee. Our customer service team guides you through the return.

Simpson Strong-Tie warranty coverage

The manufacturer's warranty terms are set by Simpson Strong-Tie. We do not list a duration here. For a structural project, visit the Simpson Strong-Tie website or contact our customer service before buying.

What is covered

• Satisfaction or money-back return: you have 30 days to return the APVB66 base to Équipement Industriel Polar.
• Manufacturer warranty: manufacturing defects fall under Simpson Strong-Tie's terms.

Warranty exclusions

The warranty does NOT cover:

• Improper installation: a poorly fastened base or one installed without the recommended fasteners.
• Modification of the part: a base that is cut, drilled or has a damaged coating.
• Use beyond the intended loads: follow the manufacturer's guidance.

Claim procedure

4-step procedure:

Step 1: Documentation

• Your proof of purchase from Équipement Industriel Polar.
• The model: APVB66.
• Photos of the base and the installation.

Step 2: Contact

Équipement Industriel Polar customer service (30-day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec City
• Hours: Monday to Friday, 8 a.m. to 5 p.m.

Simpson Strong-Tie (manufacturer warranty):

Visit the Simpson Strong-Tie website to reach customer service.

Step 3: Return

Pack the base carefully. Follow the instructions from our customer service team or the manufacturer.

Step 4: Processing

Refund or processing times depend on the service involved. Ask for an estimate during your first contact.
