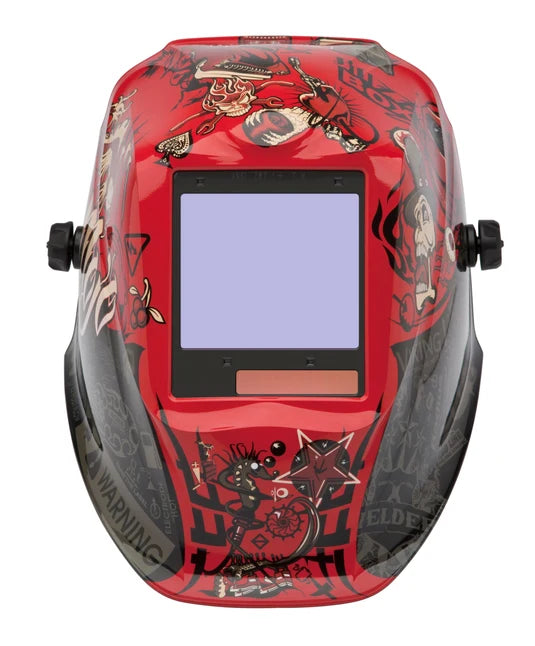

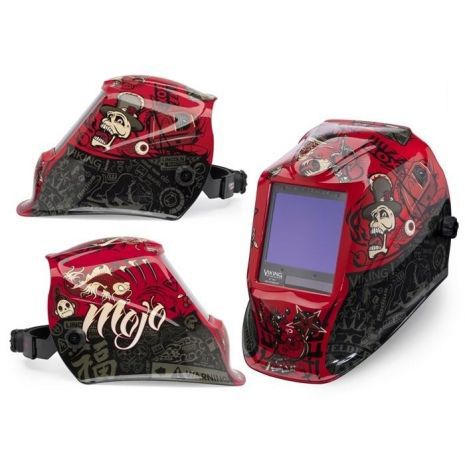

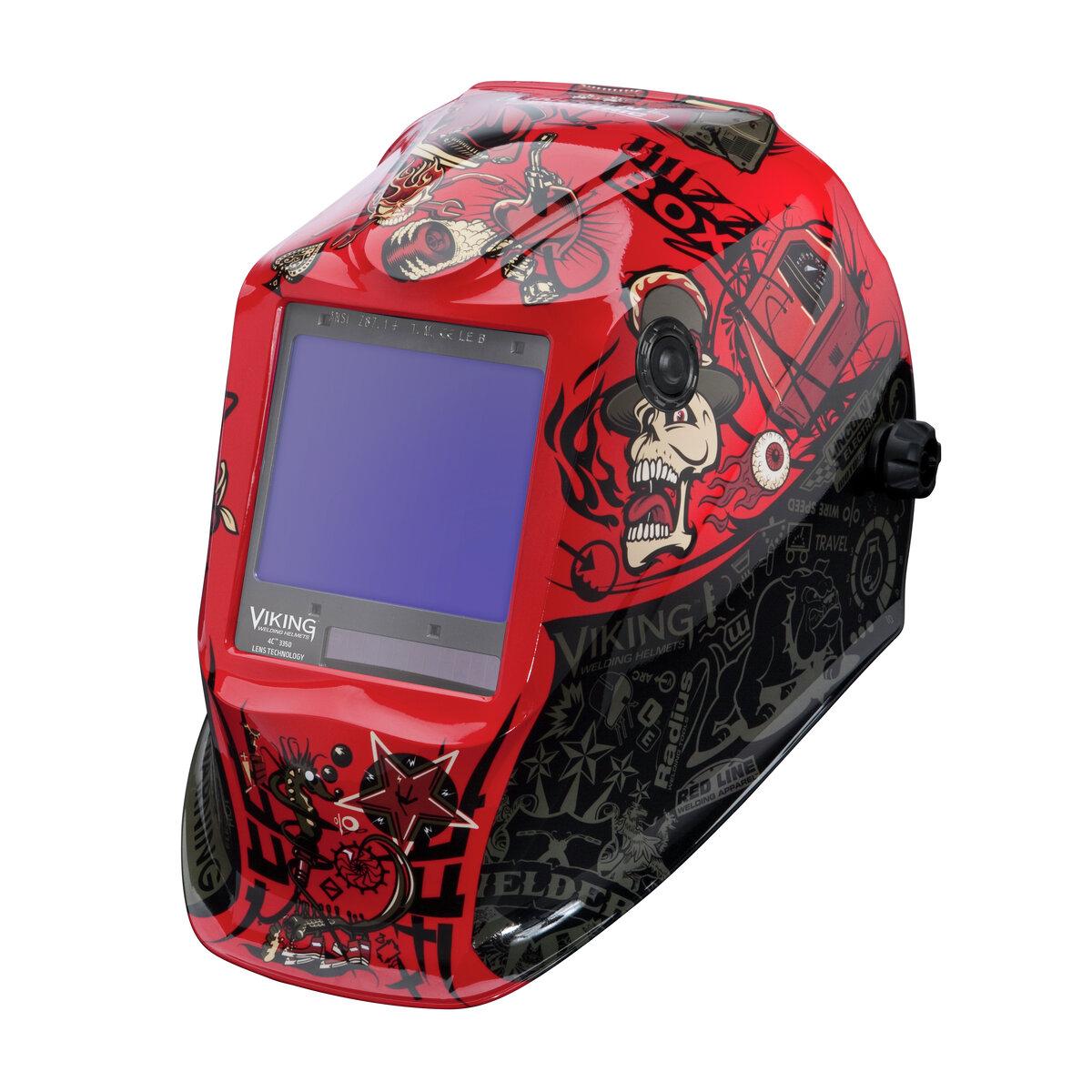

3350 VIKING MOJO K3101-4 WELDING HELMET

Lincoln Viking 3350 Mojo Helmet Contents

This package includes everything you need to start welding safely, right out of the box.

Included in your order:

- Lincoln Viking 3350 Mojo Welding Helmet (K3101-4): auto-darkening lens with 4C technology and variable shade 5-13.
- Carry Bag: to protect the helmet between jobs.
- Bandana: for added comfort under the X6 headgear.
- 5 Outer Cover Lenses: to be replaced as needed due to wear.
- 2 Inner Cover Lenses: to protect the auto-darkening lens.
- CR2450 Battery: already installed in the helmet.

Product Benefits

Maximum Optical Clarity: 4C technology and 1/1/1/1 optical clarity rating provide a clear view of the workpiece and arc, reducing eye strain.
Process Versatility: Stick, TIG, MIG, Flux-Cored, and gouging are all covered by a single helmet.
Extended Comfort: the X6 headgear distributes weight and adjusts precisely to the welder's head.
Quick Grind Mode: a single external button allows mode changes without removing the helmet.

Recommended Complementary Accessories

These accessories complement your Lincoln Viking 3350 Mojo helmet for extended use.
- Replacement outer cover lenses, to be replaced as needed due to wear.
- Replacement CR2450 battery, sold separately.
- Gloves and protective clothing for arc welding, sold separately.

First Use

Before your first welding session, follow these simple steps.

1. Adjust the X6 harness to your head using the front and rear knobs.
2. Remove the protective film from the auto-darkening lens and the protective lenses.
3. Adjust the shade (5 to 13) according to the welding process used.
4. Adjust sensitivity and light/dark delay according to your lighting conditions.

Regular Maintenance

Simple maintenance extends the life of your welding helmet.

After each use:
- Wipe the lens and protective lenses with a soft, dry cloth.
- Store the helmet in its carrying bag to prevent scratches.
- Check the condition of the outer protective lenses before each new use.

Battery management:
- Replace the CR2450 battery as soon as the low charge indicator appears.
- Remove the battery if the helmet remains unused for a long period.

Cleaning and Maintenance

1. Auto-darkening lens: clean with a soft cloth; never use solvents or abrasive products.
2. Outer and inner protective lenses: replace them as soon as they are scratched or covered with spatter.
3. X6 harness: wipe the headband and rear cushion with a damp cloth as needed.

Precautions for Use

For your safety:
- Always check that the lens darkens correctly before welding.
- Never weld with damaged or missing protective lenses.
- Observe the operating temperature range of -10°C to 55°C.
- Never modify the ADF cartridge or internal components of the helmet: this voids the manufacturer's warranty.

Storage Tips

Short-term storage:
- Store the helmet in its carrying bag, protected from dust and impacts.

Winter storage in Canada:

Observe the storage temperature range of -20°C to 70°C.
- Avoid leaving the helmet in an unheated vehicle for long periods, as this can affect the battery and lens.

Polar Industrial Equipment Warranty Coverage

Polar Industrial Equipment offers a 30-day satisfaction guarantee on this purchase. You may return the device within this period if it does not meet your expectations.

Lincoln Electric Warranty Coverage

Duration: 3 years on the Lincoln Viking 3350 Mojo welding helmet (K3101-4).
- Warranty Type: Parts against manufacturing defects.
- Warranty applicable to purchases from an authorized Lincoln Electric retailer.

What Is Covered
- Manufacturing defects: defective ADF cartridge, shell, and headgear straight from the factory.
- Auto-darkening cartridge (ADF): covered against functional defects during the warranty period.

What Lincoln Electric will do:
- Repair or replace defective parts.
- Provide technical support for remote diagnosis.

Warranty Exclusions
The warranty does not cover:
- Normal wear and tear: protective lenses, battery, and headgear straps that wear out with use.
- Physical damage: drops, impacts, or cracks caused by improper handling.
- Misuse: welding without protective lenses or outside the indicated temperature range.
- Scratches on the lens caused by cleaning with inadequate products.
- Negligence: lack of basic maintenance or unauthorized modification of the helmet.

Claim Procedure

How to make a claim:

Step 1: Documentation
Keep your purchase invoice, the helmet's serial number, and a description of the problem encountered.

Step 2: Contact
Polar Industrial Equipment Customer Service (30-day returns):
- Phone: 1-800-567-3206
- Email: info@equipementpolar.com
- Address: 3425 Boulevard Wilfrid-Hamel, Canada
- Hours: Monday to Friday, 8 AM to 5 PM

Lincoln Electric Canada Service (manufacturer's warranty):
Contact Lincoln Electric support via lincolnelectric.com for any claims related to the manufacturer's warranty.

Step 3: Return
Pack the helmet in its original packaging, with all included accessories, to prevent any damage during transport.

Step 4: Processing
Processing time varies depending on the nature of the claim. Polar Industrial Equipment ensures follow-up until complete resolution.
