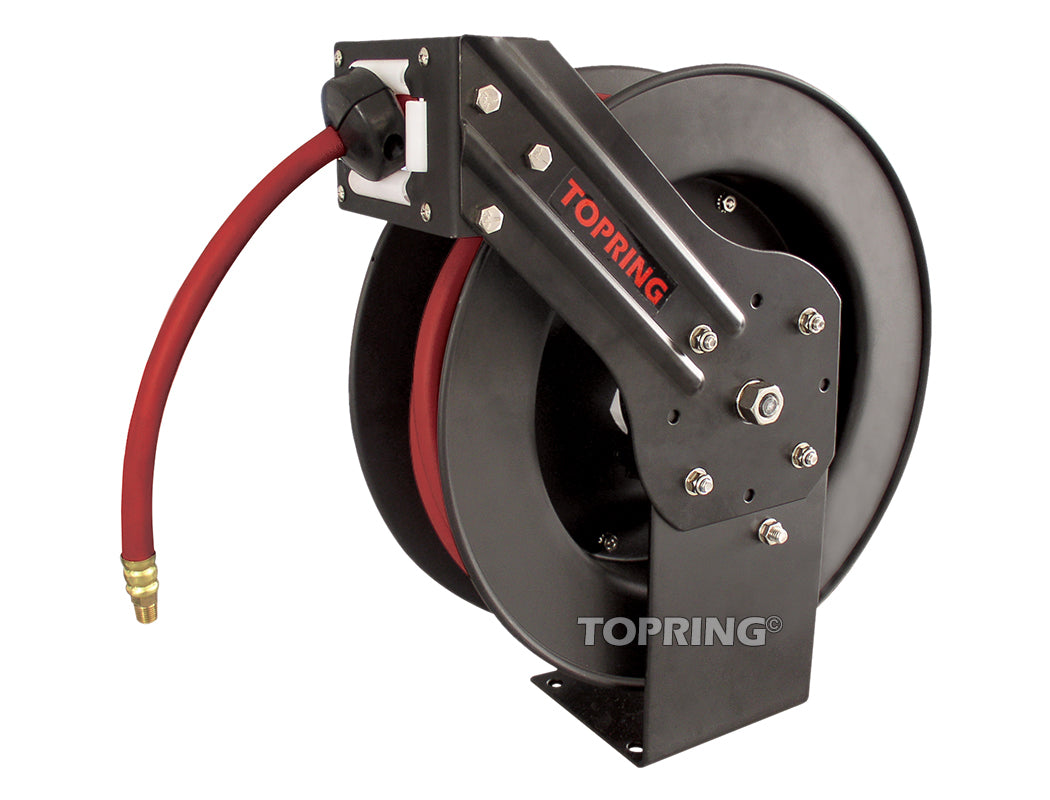

HEAVY DUTY STEEL REEL 1/2'' 50' TOPRING 79.336

Technical specifications and certifications

• Hose Reel with Hose
• Hose: FLEXhybrid Technopolymer
• Hose ID: 1/2 in
• Hose Length: 50 ft
• Inlet: 1/2 (F) NPT
• Outlet: 3/8 (M) NPT
• Model: X-Large
• Fluid: Compressed Air
• Maximum Working Pressure: 300 PSI
• Housing Color: Black

Features and Benefits

• Hose included
• Automatic rewind
• Heavy-duty steel construction
• Durable enamel finish resists corrosion
• Wide, reinforced “L” shaped base
• Adjustable rewind guide for wall, ceiling and floor installation
• 4-way roller guides to reduce hose wear
• Multi-position ratchet lock and easy tension adjustment
• Fully recessed rewind spring
• Connecting hose not included
• Refer to product code 79.014 for the correct connecting hose

Operation and installation

INSTALLATION TIP
The winding guide can be pivoted into several positions

DEV-79.336/1A

79,336

Topring
