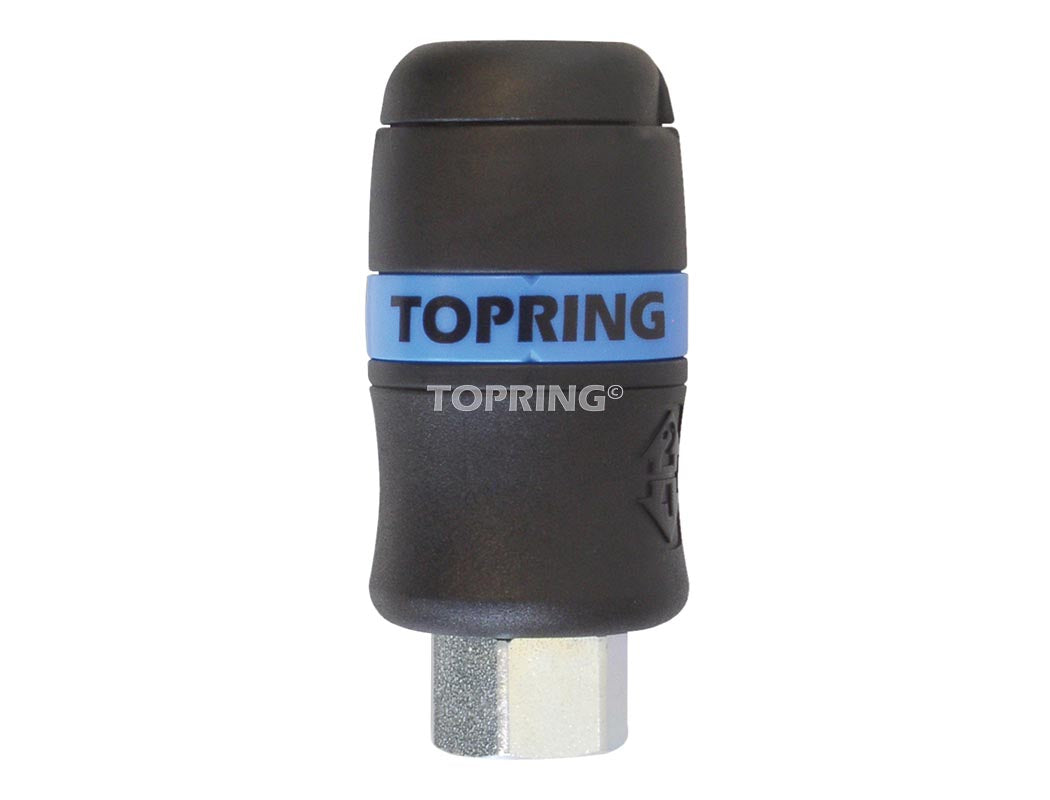

TOPRING 21.469C TOPQUICK FITTING 3/8" (F) NPT

Technical specifications and certifications

• Thread: 3/8 (F) NPT
• Maximum operating pressure: 232 PSI
• Operating temperature: -15 to 70°C
• Airflow: 73 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Very resistant composite
• Locking nut: Nickel-plated brass
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept 3/8 INDUSTRIAL type ends (AA-59439)
• Prevent the possibility of dangerous whiplash with a 2-step disconnection
• Resistant to shocks and harsh treatments, for an exceptional duration of use
• Composite socket protects delicate surfaces from scratches
• Silicone-free body to prevent the risk of compressed air contamination when applying paint or varnish
• Thanks to their lightness, they are ergonomic and safe
• Fully automatic
• Downstream pressure automatically relieved for easy disconnection at zero pressure
• Sound level when disconnecting is only 80 dB
• Meet ISO 4414 safety standards
• Waterproof and reliable

Operation and installation

SECURE SOLUTION WITH 2-STEP DISCONNECTION
1. Remove the socket to relieve downstream air pressure. The end is disconnected, but held in the fitting
2. Push the socket in the opposite direction. The end is completely released

TECHNICAL ADVICE
THE BLUE RING indicates that it is an INDUSTRIAL type fitting

Applications

• Any pneumatic connection where safety is paramount (whiplash, accidental disconnection)
