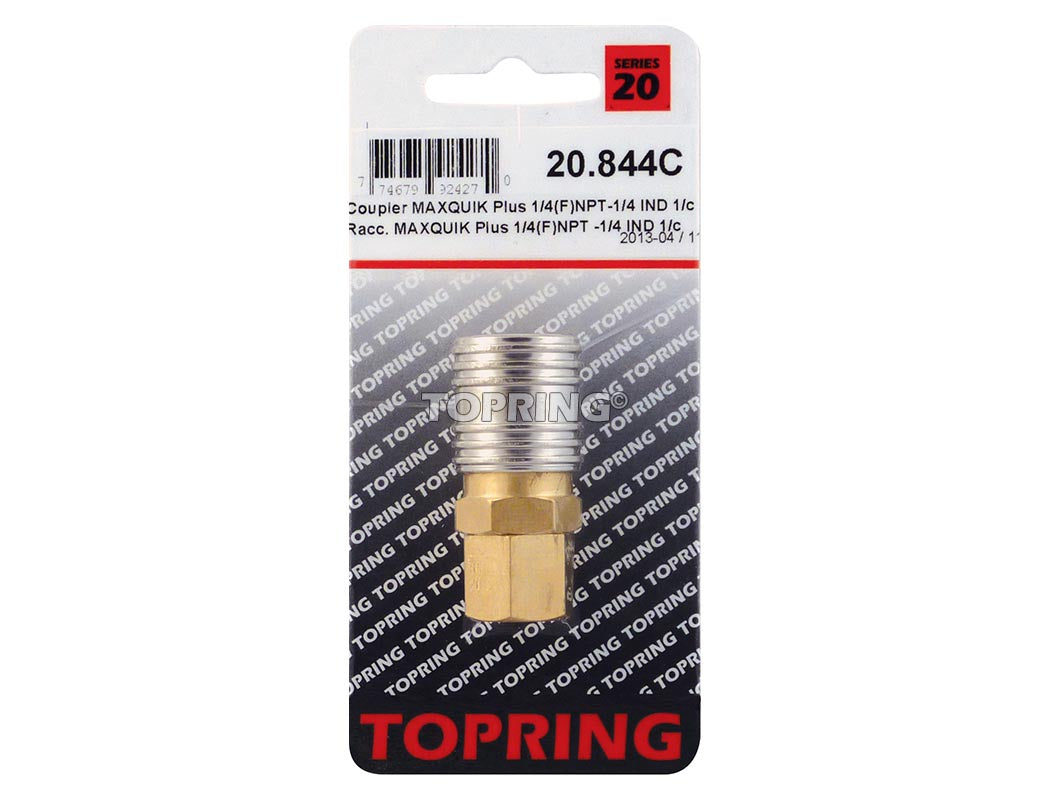

TOPRING 20.844C MAXIQUICK FITTING 1/4" (F) NPT

Technical specifications and certifications

• Thread: 1/4 (F) NPT
• Maximum operating pressure: 250 PSI
• Operating temperature: -40 to 107°C
• Airflow: 37 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Brass
• Socket: Nickel-plated steel
• Valve: Zinc plated steel
• Locking mechanism: Stainless steel balls
• Spring: Stainless steel
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept 1/4 INDUSTRIAL type ends (AA-59439)
• Robust and reliable
• Ball lock mechanism
• Socket manually operated to connect or disconnect the plug

Applications

• Compressed air distribution systems and air tools
