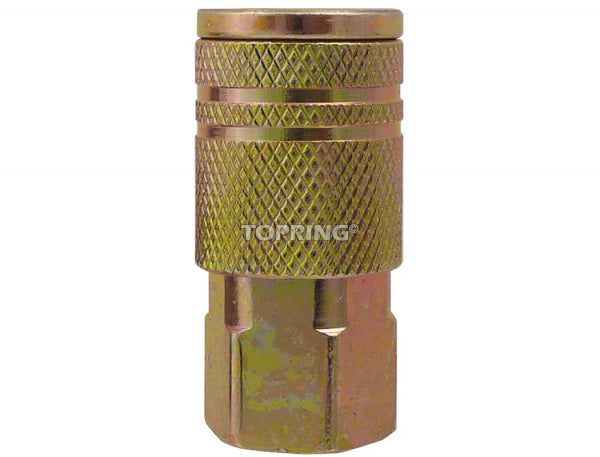

MAXQUIK 1/4 IND) 1/4 (F)NPT

Technical specifications and certifications

• Thread: 1/4 (F) NPT
• Maximum operating pressure: 250 PSI
• Operating temperature: -40 to 107°C
• Airflow: 24 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Zinc plated steel
• Lock nut: Zinc plated steel
• Socket: Zinc plated steel
• Valve: Zinc plated steel
• Spring: Nickel-plated steel
• Locking mechanism: Nickel-plated steel balls
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept 1/4 INDUSTRIAL type ends (AA-59439)
• Socket manually operated to connect or disconnect the plug
• Compact and economical design
• Efficient and secure connection with four-ball locking mechanism
• Guard device preventing accidental disconnections
• Knurled socket for better grip

Applications

• Air tools (staplers, nailers, screwdrivers and others)
