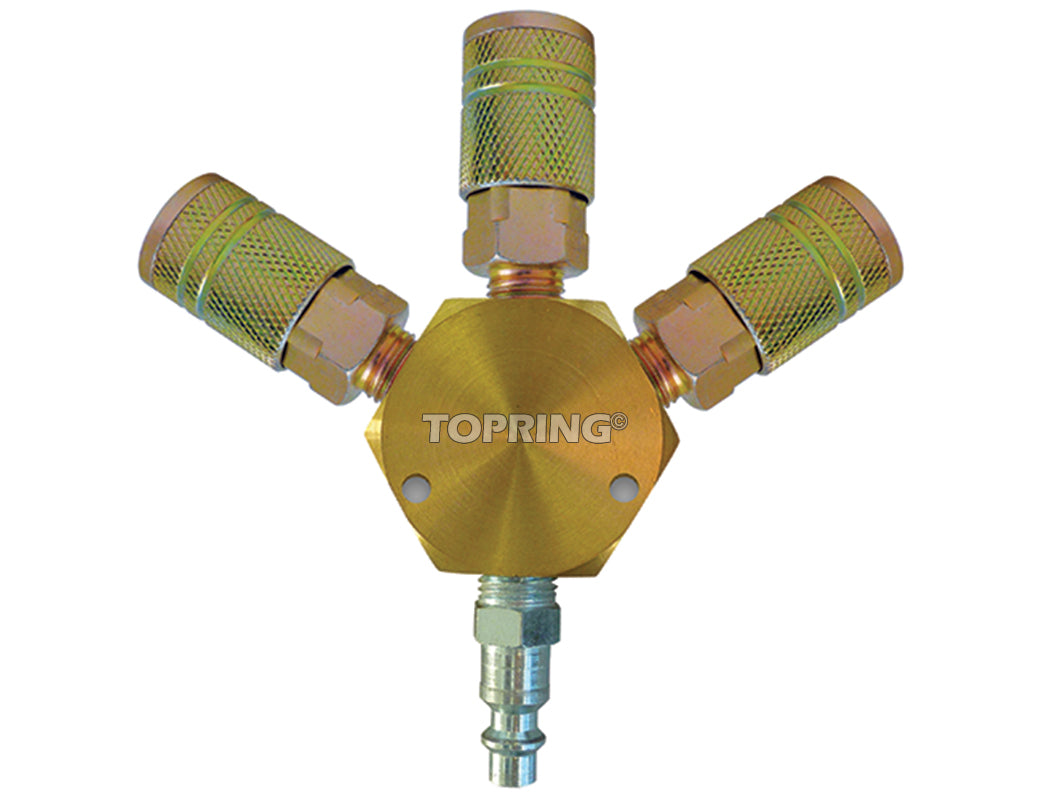

TOPRING 20.703C 1/4 X 1/4 FEMALE 3-WAY MANIFOLD KIT

Technical specifications and certifications

• 3 x 20.942 • 1/4 (M) NPT connection
• 1 x 62.810 • triple distributor
• 1 x 20.242 • about 1/4 (M) NPT

• Maximum operating pressure: 250 PSI
• Operating temperature: -40 to 107°C
• Airflow: 24 SCFM at 100 PSI inlet with 10 PSI pressure drop

Features and Benefits

• Designed to accept 1/4 INDUSTRIAL type ends (AA-59439)
• Socket manually operated to connect or disconnect the end piece
• Compact and economical design
• Efficient and secure connection with four-ball locking mechanism
• Guard device preventing accidental disconnections
• Knurled socket for better grip
• Allows you to connect 2 tools to a single air hose

Applications

• Air tools (staplers, nailers, screwdrivers and others)
