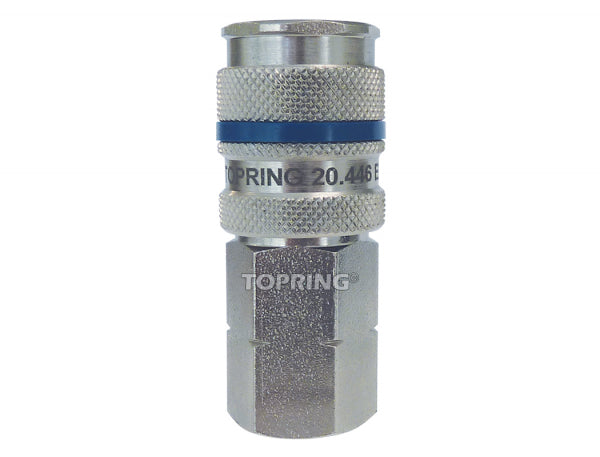

CONNECTION (1/4 IND) 3/8(F) NPT

Technical specifications and certifications

• Thread: 3/8 (F) NPT
• Maximum operating pressure: 362 PSI
• Operating temperature: -20 to 60°C
• Airflow: 44 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Zinc plated steel
• Guard device: Zinc plated steel
• Valve: Acetal
• Socket: Zinc plated steel
• Valve spring: Stainless steel
• Locking mechanism: Hardened steel balls
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept 1/4 INDUSTRIAL type ends (AA-59439)
• Very high performance and corrosion resistance
• Excellent air flow with low pressure drop
• Guard device preventing accidental disconnections
• Efficient and safe automatic connection with ball locking mechanism
• Easy connection, even under pressure
• Knurled socket for better grip

Operation and installation

TECHNICAL ADVICE
THE BLUE RING indicates that it is an INDUSTRIAL type fitting

Applications

• Compressed air distribution systems
• Air tools
