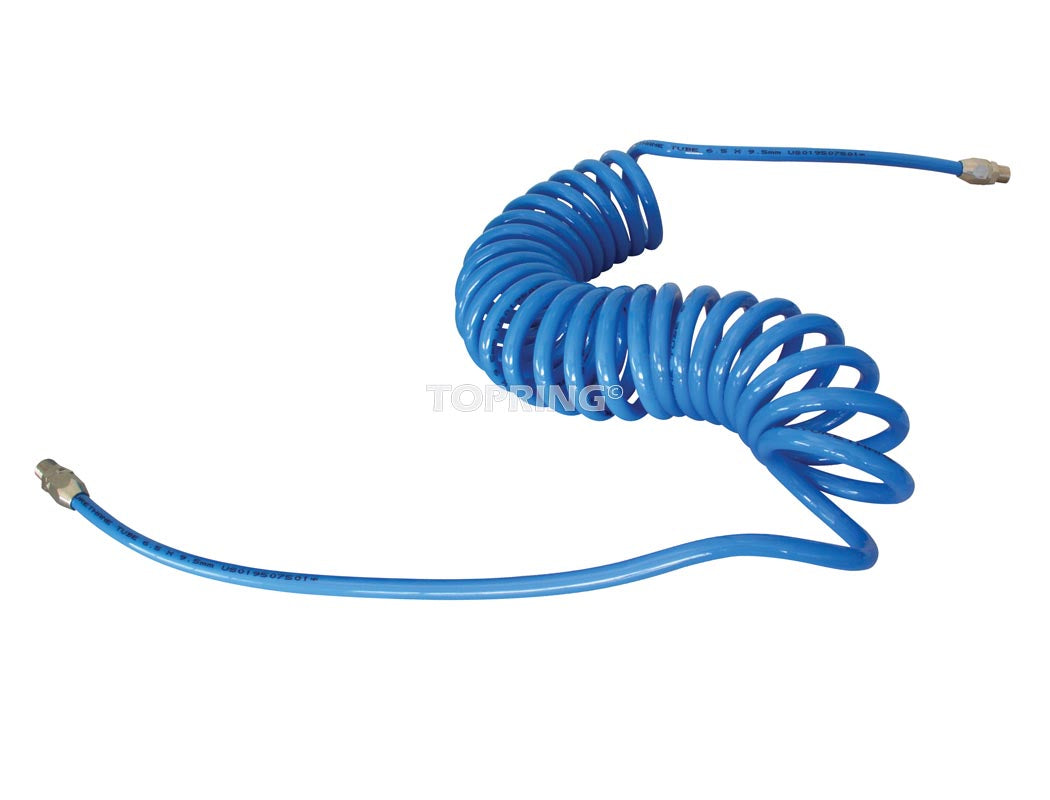

AIR HOSE 1/4" X 25' BLUE TOPRING

Technical specifications and certifications

• Pipe ID: 1/4 in.
• SpiralD.E. : 2.8 in
• Total length: 25 ft
• Use length: 20 ft
• Connections (M): 1/4 NPT
• Maximum operating pressure: 132 PSI at 23°C
• Operating temperature: -20 to 70°C
• Hardness: 98 Shore A
• Maximum length of use: 80% of the total length

Materials) :
• Polyurethane (ester base)

Features and Benefits

• Ester-based polyurethane hose ideal for oil-filled applications
• Easily extends and automatically retracts
• Excellent self-retracting memory
• Very high resistance to abrasion
• Very high resistance to folding
• 25% lighter than rubber hoses
• Much more elastic and flexible than nylon hoses
• Reusable nickel-plated brass fittings
• Reliable, leak-proof connections resistant to loosening caused by vibrations
• Swivel fitting on 4-inch feed side end for maximum directional flexibility
• Non-swivel connection on the 20-inch end on the use side improves vibration resistance for a secure connection
• No presence of silicone

Operation and installation

TECHNICAL ADVICE
It is important to choose the correct internal diameter of the pipe according to the air flow required for the application (see the reference table at the end of the series)
3/8 DI hose delivers 3x more flow than 1/4 DI hose

Applications

• Air tools, assembly lines and machine shops, body repair and paint shops
