Chicago pneumatic | SKU:
CP-870

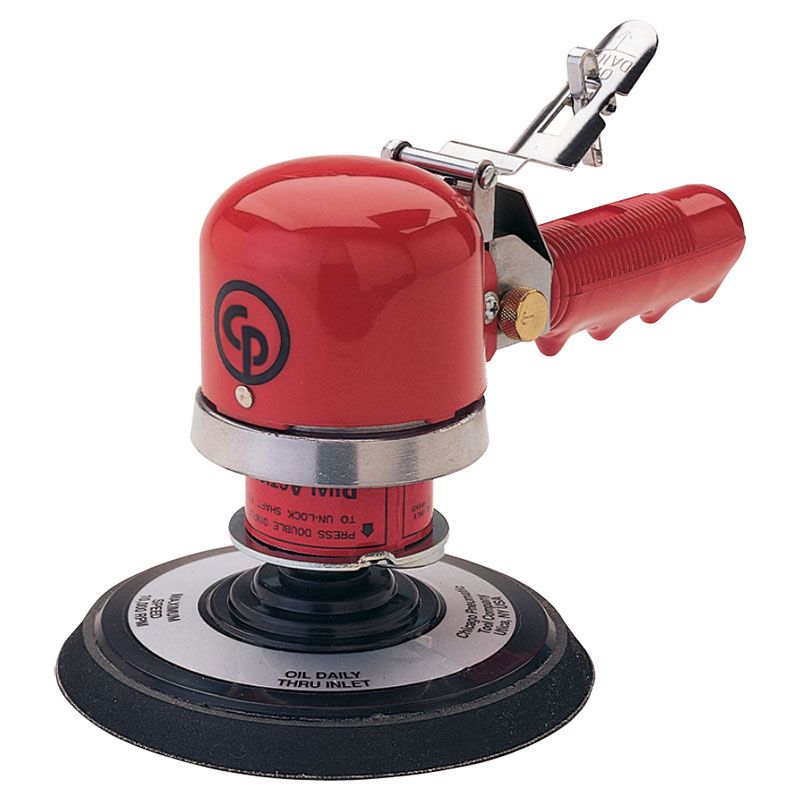

CP 6'' DOUBLE ACTION SANDER
Regular price
$140.65
Unit price
/
Unavailable
Shipping calculated at checkout.
CP 6'' DOUBLE ACTION SANDER is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
CP 6'' DOUBLE ACTION SANDER
Regular price
$140.65
Unit price
/
Unavailable
Description
Description
CP870 Series - Orbital Sanders
For body shop operators working in filler mixing and smoothing, edge smoothing and paint preparation who are looking for dual action sanders, the CP870 Series is the dual action air sander you need.
Technical specifications
Speed
Free speed
10,000 rpm
Air consumption at free speed
8.5 l/s
Overspeed stop
No
Noise and vibrations
Sound power
94 dB(A)
Sound pressure
83 dB(A)
Vibrational uncertainty-K
4.3 m/s²
Vibration
13.6 m/s²
Air information
Air consumption under load
7.6 l/s
Air Inlet Thread Size (in)
1/4
Air inlet thread type
TNP
Maximum dynamic air working pressure
6.3 bars
Minimum pipe diameter (16 foot pipe length)
0.38 in
Minimum pipe diameter (5 m pipe length)
10 mm
Design and functions
Abrasive pad accessory
PSA
Self-balancing
No
Circular Abrasive Pad Size (in)
6
Circular abrasive pad size (mm)
150
Main material type
Composite aluminum sleeve
Orbit size (in)
3/8
Orbit size (mm)
10
Orbit type
Random/Rotating
Number of stamp holes
0
Rotary input
No
Starting system
Lever
Empty
Without vacuum
Height and weight
Length (L)
193 mm
Weight
1.93 kg
Benefits
General purpose sander with rotary or random orbital options
Insulated grip and throttle lock to prevent accidental starts
Power regulator for precise control
PSA sanding pad
