Magnetic Drill FEIN JME ShortSlugger II 1200W Weldon 3/4in

Contents of the FEIN JME ShortSlugger II Case

This magnetic drill ships complete in a carrying case, with every accessory you need to start drilling as soon as it arrives.

Included in your order:

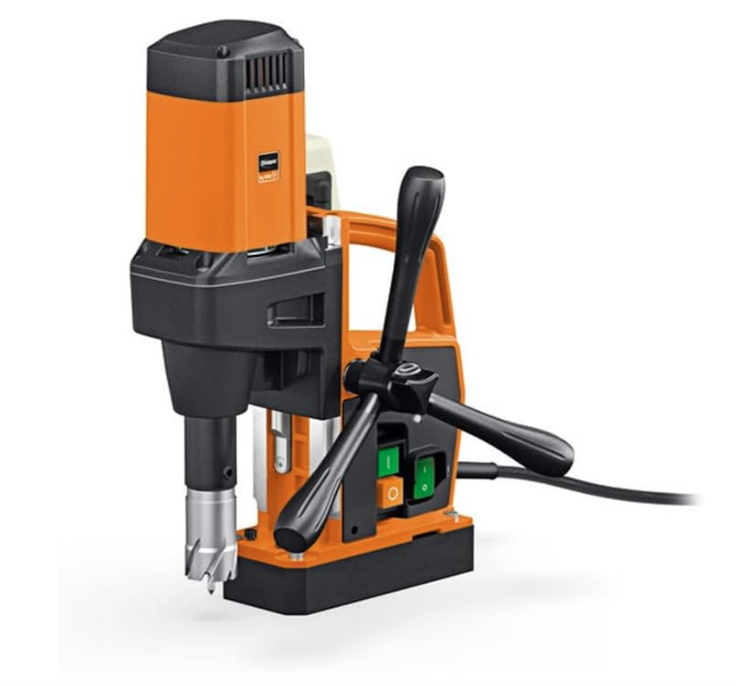

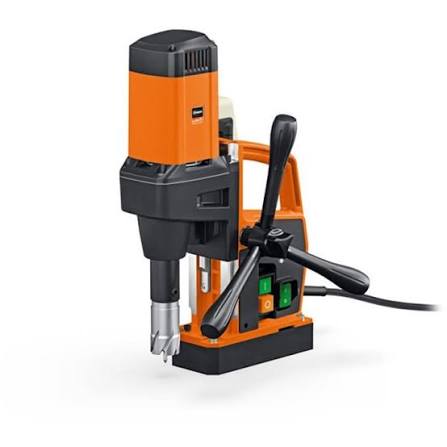

• Magnetic core drilling unit: the main 1200W motor with a 10,000N magnetic base.
• Coolant reservoir: automatically feeds cutting fluid to the bit during drilling.
• Safety strap: holds the tool in place during vertical or overhead drilling.
• Chip hook: removes metal chips from the hole safely.
• Slug ejector: pushes out the metal slug once coring is complete.
• Chip guard: protects the operator from debris during drilling.
• Carrying case: stores and protects the tool and its accessories between jobsites.

Advantages of the FEIN JME ShortSlugger II

• Record lightness: at 10.80kg, it ranks among the lightest magnetic drills in its class, reducing fatigue during overhead installs.

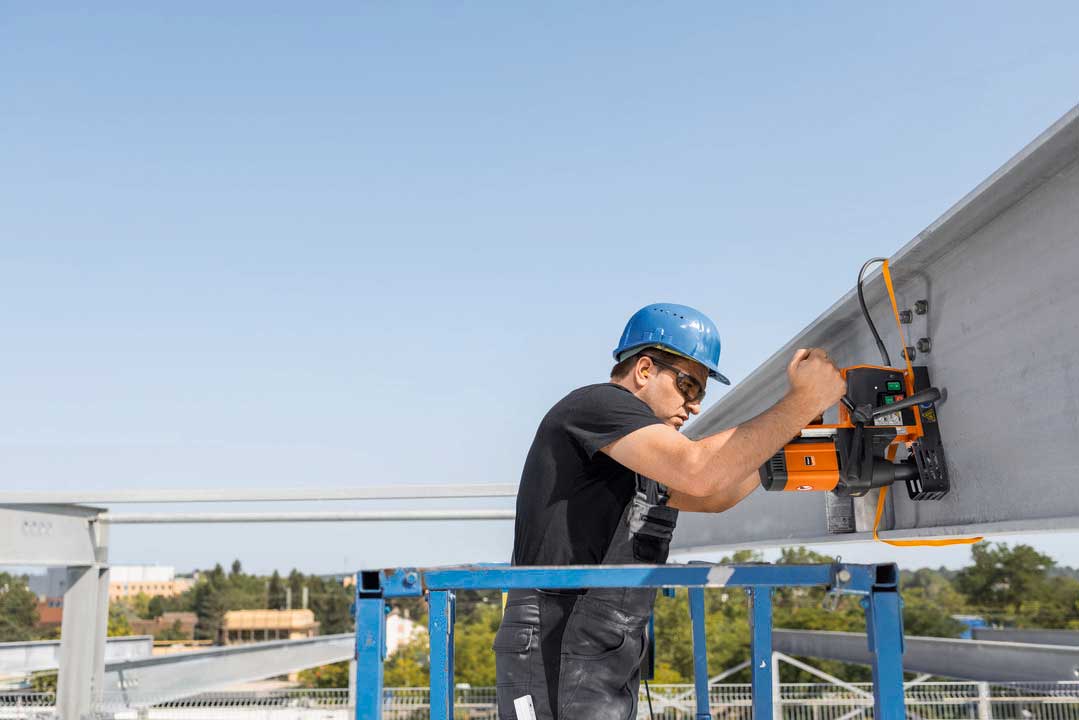

• Reliable magnetic force: 10,000N of holding force allows safe drilling even on vertical or angled surfaces.
• Single-speed simplicity: a single-speed mechanism means fewer parts to maintain and greater reliability on site.
• Efficient power: 770W of useful power delivers consistent coring in structural steel without overheating.

Recommended Complementary Accessories

To extend the life of your magnetic drill and get the best cut quality, consider these accessories sold separately.

• Jancy 10208W Cutting Oil: extends cutter life and improves cut quality. Sold separately.
• FEIN FUSC221TCT 3/4in x 2in Carbide Cutter: versatile size for common drilling diameters. Sold separately.
• FEIN FUSC245TCT 1-1/4in x 2in Carbide Cutter: maximum diameter supported by the ShortSlugger II. Sold separately.

First Use

Follow these steps before your first drilling job to ensure safe and optimal operation.

1. Inspect the surface: check that the anchoring surface is clean, flat and free of thick paint or rust for optimal magnetic adhesion.
2. Attach the safety strap: always attach the supplied strap before any vertical or overhead drilling.
3. Fill the coolant reservoir: pour cutting fluid into the reservoir to cool the bit and extend its life.
4. Install the correct cutter: choose a compatible diameter, up to 32mm, and insert it into the 3/4in Weldon shank.

Regular Maintenance

Simple care after every use preserves your magnetic drill's performance over the long term.

After each use:

• Remove chips built up on the base and cutter.
• Wipe off excess coolant from the tool and work surface.
• Check the cutter's condition and replace it if dull.

Coolant management:

• Check the level before each use.
• Replace used coolant regularly.
• Never drill dry, as this can damage the cutter and motor.

Cleaning and Maintenance

1. Motor brushes: have brush wear checked by an authorized FEIN service center after several hundred hours of use.
2. Cooling vents: clean the motor vents regularly with compressed air to prevent overheating.
3. Magnetic base: wipe the base after each use to remove metal filings and moisture and preserve holding force.
4. Stroke slides: apply a thin coat of light oil to the slides for smooth movement.

Safety Precautions

For your safety:

• Never use the tool without the safety strap on a vertical or overhead surface.
• Never remove the chip guard while drilling.
• Always wear safety glasses and protective gloves.
• Check that the surface is free of flammable materials before drilling.
• Unplug the tool before changing cutters.

Storage Tips

• Short-term storage: store the tool in its original case, in a dry place between jobsites.
• Long-term storage: store in a dry, temperate place to prevent corrosion of the magnetic base and cutters.
• Winter storage across Canada: avoid unheated garages with high humidity, which can promote corrosion and damage the motor's electrical components.

Polar Equipment Warranty Coverage

Polar Equipment offers a 30-day satisfaction guarantee on this purchase, in addition to FEIN's full manufacturer warranty.

FEIN Warranty Coverage

• 3-Year FEIN PLUS Warranty: covers the complete tool against manufacturing defects.
• Parts and labour: included under the terms of the FEIN PLUS program.

What Is Covered

The FEIN PLUS warranty covers the following components in case of a manufacturing defect:

• Electric motor: winding or internal component defects.
• Magnetic base and anchoring system: loss of magnetic force due to a manufacturing defect.
• Electrical components and switches: wiring or control failures.
• Housing and gears: manufacturing defects on mechanical components.

What FEIN will do:

• Repair the defective tool at no charge.
• Replace defective parts.
• Replace the entire tool if repair is not possible.

Warranty Exclusions

The warranty does NOT cover:

• Normal wear: cutters, motor brushes and seals that wear out under normal use.
• Physical damage: drops, impacts or crushing of the housing or magnetic base.
• Misuse: drilling on an incompatible surface or without proper coolant.
• Extreme conditions: immersion or corrosion caused by humid storage.
• Neglect: failure to maintain the magnetic base or stroke slides.

Claims Procedure

How to file a claim:

Step 1: Documentation

• Keep your purchase invoice, serial number and a description of the issue.

Step 2: Contact

Polar Equipment Customer Service (30-day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec City
• Hours: Monday to Friday, 8am to 5pm

FEIN Canada Service (manufacturer warranty):

fein.com/en_ca

Step 3: Return

Pack the tool in its original case with all included accessories, then ship it to the address provided by customer service.

Step 4: Processing

Assessment takes 5 to 10 business days, followed by a repair, replacement or refund as applicable.
