Fein JMC MAGFORCE 90 Compact Brushless Magnetic Drill

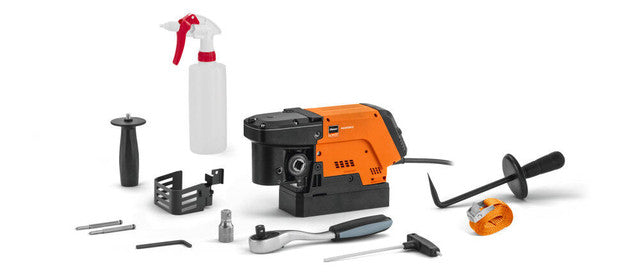

What's in the Fein JMC MAGFORCE 90 Kit

This complete kit includes everything you need to drill in the tightest spaces right out of the box, along with setup accessories and an L-BOXX carrying case.

Included in your order:

1x Fein JMC MAGFORCE 90 Magnetic Drill

Main unit with 1,200 W HighPerformance brushless motor and magnetic holding force display.

1x Coolant Pump

Continuously feeds the cutter to extend its service life and improve cutting quality.

1x Safety Strap

Secures the drill to the workpiece for safe drilling in vertical or overhead positions.

1x Chip Hook and 1 Chip Guard

Remove accumulated chips and protect the operator during drilling.

2x Ejector Pins

Push the core slug out of the cutter after drilling for quick, safe removal.

Centering Pins

Ensure precise cutter positioning before drilling begins.

1x 1/2 in. Ratchet with Extension

Allows installing and removing the cutter in tight spaces where a standard wrench won't fit.

1x 5 mm Allen Key Set (straight and T-handle)

For maintenance and accessory changes.

1x L-BOXX 238 Carrying Case

Stores and protects the drill and all its accessories between job sites, stackable with other L-BOXX modules.

Kit Advantages

Compactness

The most compact and lightweight format in its category, at only 18.74 lbs, lets you drill in spaces standard magnetic drills can't reach.

Portability

The L-BOXX 238 case makes it easy to move between job sites and stacks with other L-BOXX modules.

Precision

The centering pins and chip guard ensure precise, safe drilling from the first use.

Recommended Complementary Accessories

To maximize the lifespan of your magnetic drill, the following accessories are sold separately:

• Fein FUSC251TCT 1-3/8 x 2 in. Carbide Cutter - Annular cutter matching the maximum capacity of the JMC MAGFORCE 90, sold separately.
• Fein FUSC227TCT 7/8 x 2 in. Carbide Cutter - Common size for standard fastening hole drilling, sold separately.
• Jancy 10208W Cutting Fluid - Water-soluble cutting fluid for the coolant pump, sold separately.
• Fein 2 in. Pin 9/16-11/16 in. - Replacement centering pin for annular cutters, sold separately.

First Use

Before first use, follow these steps to prepare your magnetic drill:

1. Check the cord and housing - Inspect the power cord and housing for damage before plugging in the drill.
2. Fill the coolant pump - Fill the supplied coolant pump to protect the annular cutter from the first drilling operation.
3. Attach the safety strap - Secure the safety strap to the workpiece before drilling in vertical, horizontal, or overhead positions.

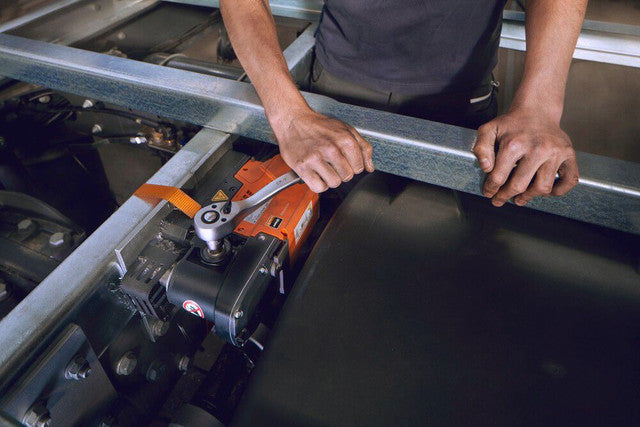

4. Install the cutter with the ratchet - Use the supplied 1/2 in. ratchet to install the cutter in tight spaces where a standard wrench won't fit.

Regular Maintenance

Regular maintenance extends the magnetic drill's service life and keeps drilling precision consistent.

After each use:

• Wipe down the housing and magnetic base to remove chips and cutting residue
• Empty and clean the coolant pump
• Store the drill in its L-BOXX 238 case

Magnetic base care:

• Keep the magnetic base surface free of rust and chips for optimal magnetic force
• Check that the work surface is clean and paint-free before each setup

Cleaning and Maintenance

Recommended periodic maintenance:

1. Brushless motor cleaning - Remove metal dust from ventilation openings with low-pressure compressed air. The brushless motor requires no carbon brush replacement.
2. Tilt sensor check - Periodically test the tilt sensor to confirm automatic shutoff in case of slippage.
3. Ratchet handle lubrication - Apply a thin layer of lubricant to the ratchet mechanism for smooth movement.

Safety Precautions

For your safety:

• Non-magnetic work surface - Avoid using the drill on a surface that won't hold the magnet, as the setup would not be secure.
• Removing the cutter before full stop - Wait for the spindle to come to a complete stop before removing the cutter or chips.
• Drilling without the safety strap - Never drill overhead or in elevated positions without securing the supplied safety strap.
• Use in unstable confined spaces - Make sure the base rests fully on the metal surface; the tilt sensor may trigger if stability is compromised.

Storage Tips

Short-term storage:

• Store the drill in its L-BOXX case, away from moisture, between job sites

Long-term storage:

• Fully empty the coolant pump and store in a dry location at a stable temperature

Winter storage in Canada:

• Avoid storing the drill in an unheated area where the coolant fluid could freeze; drain the pump before winter

Équipement Industriel Polar Warranty Coverage

Équipement Industriel Polar offers a 30-day satisfaction guarantee on this magnetic drill, in addition to the full Fein manufacturer warranty.

Fein Warranty Coverage

• 1-year base warranty included automatically with purchase
• 3-year FEIN PLUS warranty by registering the tool within 3 months of purchase
• Coverage for machines, chargers, and lithium-ion batteries per manufacturer terms

What's Covered

The Fein warranty covers manufacturing and material defects on the JMC MAGFORCE 90 magnetic drill.

Material defects - Any part showing an original manufacturing defect.

Motor failure - Failure of the brushless motor under normal operating conditions.

Electrical components - Switches, power cord, and tilt sensor.

Feed mechanism - Ratcheting handle, rack, and lift system.

What Fein will do:

• Repair or replace the defective part free of charge at an authorized service center
• Supply the replacement parts needed for the repair

Warranty Exclusions

This warranty does NOT cover:

• Normal wear - Annular cutters and consumable drill bits.
• Physical damage - Drops, impacts, or a cracked housing.
• Misuse - Drilling on a non-magnetic surface or without the safety strap.
• Extreme conditions - Use underwater or in a corrosive environment not intended by the manufacturer.
• Neglect - Failure to maintain the coolant pump or magnetic base.

Claim Procedure

How to file a claim:

Step 1: Documentation

Keep your Équipement Industriel Polar invoice and the drill's serial number.

Step 2: Contact

Équipement Industriel Polar customer service (30-day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec City
• Hours: Monday-Friday 8am-5pm

Fein Canada service (manufacturer warranty):

• Phone: 1-800-265-2581
• Email: service@fein.ca

Step 3: Return

Pack the drill in its original L-BOXX case with all included accessories.

Step 4: Processing

The service center evaluates the claim and communicates repair or replacement timelines.
