Makita Hammer Driver-Drill 18V LXT 1/2 in (Tool Only) DHP489Z

What's in the box: Makita DHP489Z hammer driver-drill

This product is sold as a bare tool, without battery or charger, with the basic accessories included by Makita.

Included in your order:

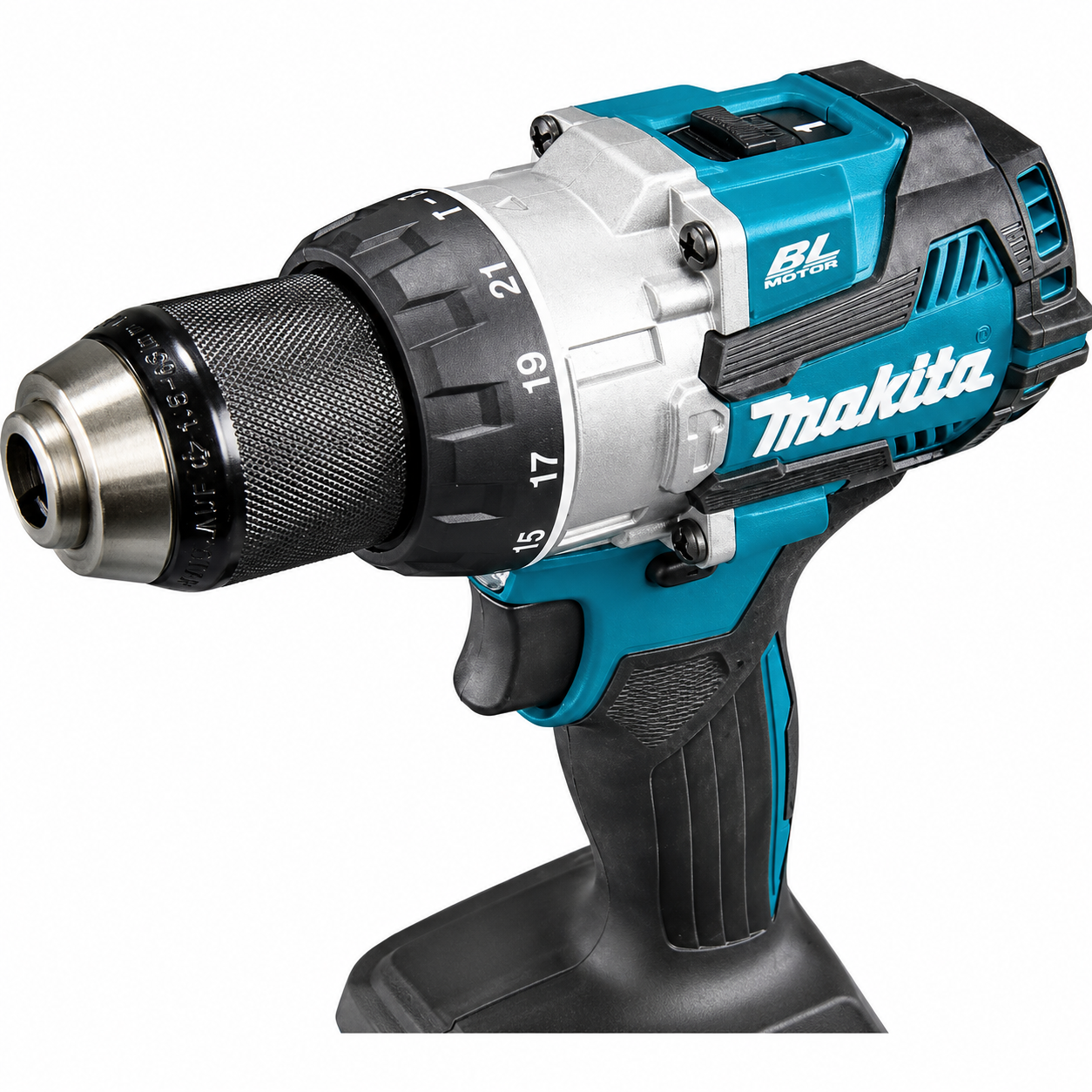

• 1x Makita DHP489Z hammer driver-drill: the main tool, brushless motor and 2-speed transmission.
• 1x 1/2 in keyless drill chuck (763261-0): for quick bit changes with no extra tool needed.
• 1x Double-ended bit 2-45 (784637-8): a double-sided bit to start your fastening work right away.
• 1x Belt hook (346449-3): reversible, to hang the tool temporarily on the job site.

Batteries and charger sold separately.

Benefits of the Makita hammer driver-drill

• Compatible with your existing battery fleet: works with any Makita 18V LXT battery you already own, no new charger needed if you're already equipped.
• Drilling versatility: the 2 speeds and hammer mode cover light drilling as well as heavy-duty work in concrete and steel.
• Added durability: the all-metal gear housing and XPT technology resist dust and water on demanding job sites.
• Comfortable to use: at just 1.5 kg and 175 mm long, the tool reduces fatigue during long work sessions.

Recommended complementary accessories

To complete your Makita hammer driver-drill, check out these compatible accessories:

• Makita 18V 5.0 Ah LXT Battery BL1850B: extended runtime for full workdays, sold separately.
• Makita 18V 6.0 Ah LXT Battery BL1860B: higher capacity for heavy-duty use, sold separately.
• Makita #2 Phillips Bit 3-1/2 in: long-reach bit for hard-to-access spots, sold separately.
• Irwin 10-Piece Masonry Bit Set: to make the most of the tool's concrete drilling capacity, sold separately.

First use

Before first using your Makita hammer driver-drill:

1. Install the keyless chuck: attach the included chuck to the tool's spindle and hand-tighten it firmly.
2. Insert a compatible 18V LXT battery: slide the charged battery into the compartment until it clicks. Batteries sold separately.
3. Select the mode and speed: adjust the speed selector (1 or 2) and drilling or hammer mode based on the task.
4. Set the clutch: choose from the 21 clutch settings based on the hardness of the material you're fastening into.

Regular maintenance

Simple maintenance extends the life of your tool.

After each use:

• Remove the battery before cleaning or storing the tool
• Wipe off dust and debris built up around the chuck
• Check that the belt hook is securely attached

Battery care:

• Recharge the battery at room temperature
• Avoid leaving a battery fully discharged for long periods
• Rotate between multiple batteries to extend their overall lifespan

Cleaning and maintenance

Cleaning the chuck and housing:

1. Chuck: open and close the chuck with no bit inserted on a regular basis to clear out accumulated dust.
2. Vents: gently blow dust out of the housing's vents using dry compressed air.
3. Outer housing: clean with a slightly damp cloth, never solvents that could damage the plastic.

Safety precautions

For your safety:

• Wear safety glasses: debris can be thrown when drilling in hammer mode.
• Never force the tool: excessive torque on a jammed bit can cause wrist injury.
• Check for electrical wires or pipes: before drilling into a wall or unknown surface.
• Remove the battery: before changing the chuck or any accessory.

Storage tips

• Short-term storage: keep the tool in a dry, dust-free spot between uses.
• Long-term storage: remove the battery from the tool and store it separately in a dry, temperate location.
• Winter storage across Canada: avoid leaving the tool, and especially its batteries, in a vehicle or an unheated garage during extreme cold, which reduces the capacity and lifespan of lithium-ion batteries.

Equipement Industriel Polar warranty coverage

Equipement Industriel Polar offers a 30-day satisfaction guarantee on this tool. If the product doesn't meet your expectations, contact our team for a quick return or exchange.

Makita warranty coverage

• 3 years: limited manufacturer warranty on Makita professional tools.
• Limited warranty: covers original material and workmanship defects.
• 2 years: separate coverage on Makita batteries and chargers, sold separately.

What's covered

The Makita manufacturer warranty covers the following:

• Manufacturing defects: any issue related to original assembly or materials.
• Motor and transmission: internal mechanical failures occurring under normal use conditions.
• Electrical components: the electric brake, LED light and battery protection circuit.
• Housing and chuck: cracks or failures not caused by impact or a fall.

What Makita will do:

• Repair the defective tool at no labor cost
• Replace defective parts with original parts
• Replace the entire tool if repair isn't possible

Warranty exclusions

The warranty does not cover:

• Normal wear: chuck, carbon brushes or exterior finish after extended use.
• Physical damage: breakage caused by a drop, impact or crushing.
• Misuse: using the tool for purposes other than those intended by the manufacturer.
• Extreme conditions: damage from water or dust exposure beyond the limits of XPT technology.
• Neglect: lack of basic maintenance leading to premature failure.
• Unauthorized modifications: any alteration of the tool by a person not authorized by Makita.

Claims procedure

4-step procedure:

Step 1: Documentation — keep your original purchase receipt and note the tool's model number (DHP489Z).

Step 2: Contact

Equipement Industriel Polar customer service (30-day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec City
• Hours: Monday to Friday, 8am to 5pm

Makita Canada service (manufacturer warranty): contact Makita Canada customer service directly through the manufacturer's official website for any extended warranty claim.

Step 3: Return — pack the tool in its original packaging or an equivalent protective container, with the required documentation.

Step 4: Processing — claims are processed as quickly as possible once the complete file is received.
