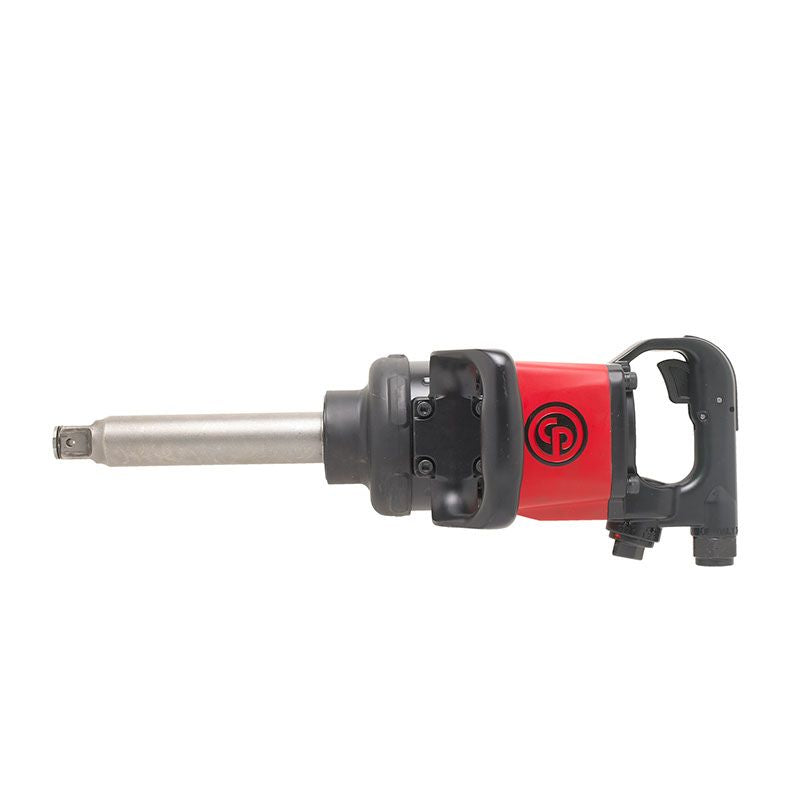

For operators working in tire changing applications looking for a high-torque, durable D-handle tool, the CP7782 Series is the 1" impact wrench for you.

Designed for tire changing, this 1" impact wrench with its high torque of 1,920 ft-lb / 2,600 Nm is highly recommended. Its reinforced closed toggle impact mechanism without pin and metal housing provide great durability. The CP7782 series includes 3 models: 1" short anvil, 1" long anvil (6" anvil) and 1" long anvil (6" anvil) with splined retainer.

Technical specifications

Imperial Metric

Maximum working torque forward

2000 Nm

Maximum torque in reverse gear

2600 Nm

Minimum working torque before

500 Nm

Limited torque

No

Air consumption under load

19 l/s

Air Inlet Thread Size (in)

1/2

Maximum dynamic air working pressure

6.3 bars

Minimum pipe diameter (16 foot pipe length)

0.5 in

Minimum pipe diameter (5 m pipe length)

13 mm

Sound power

111 dB(A)

Sound pressure

100 dB(A)

Vibrational uncertainty-K

1.8 m/s²

Vibration (m/s²)

7.8

Vibration

7.8 m/s²

Free speed

5200 rpm

Length (L)

520 mm

Power-to-weight ratio

250 Nm/kg

Weight

11.6 kg

Beats per minute

500

Body

Aluminum

Clutch housing

Steel

Clutch lubrication type

Fat

Handle type

D-handle

Impact mechanism

Rocking dog without pins

Output drive size (in)

1

Output drive type

Square

Type of output retention

Double

Side handle

Yes

Starting system

Triggering

CP7782-6

8941077826

1" AIR IMPACT WRENCH

Dimensions 56.5 x 20 x 14 cm

Weight 13.13 kg

---
