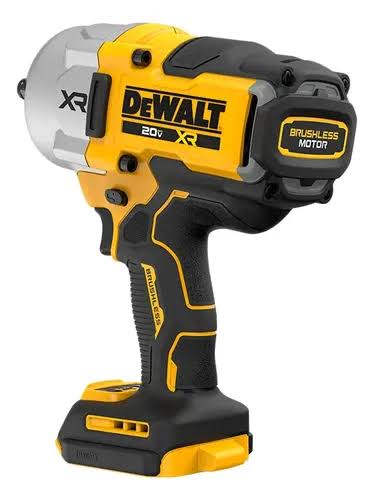

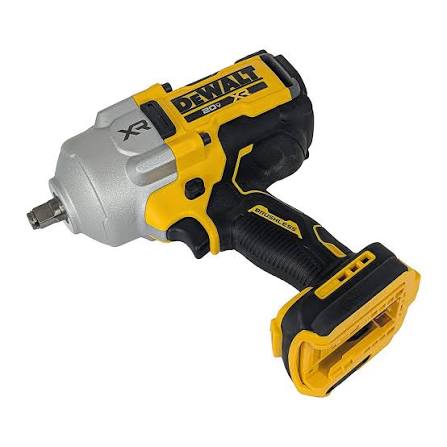

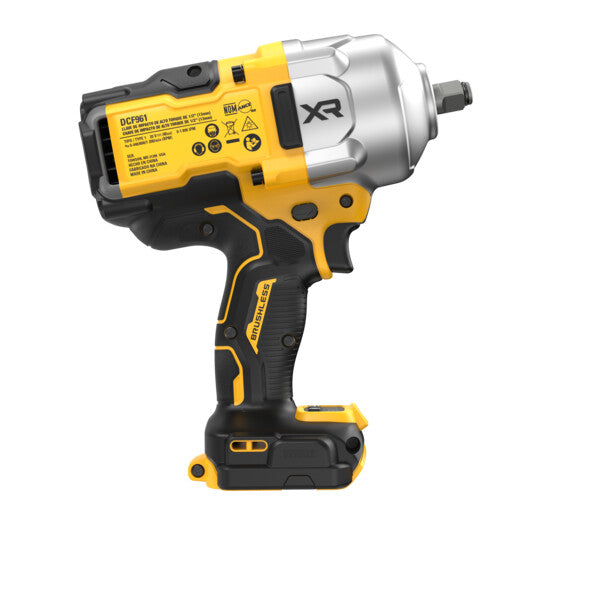

DeWalt 20V MAX XR 1/2 in Impact Wrench 1200 ft-lbs (DCF961B)

What's Included with the DeWalt DCF961B Impact Wrench

This product is sold as tool only, without battery or charger, as supplied by the manufacturer.

Included with your order:

1x DeWalt DCF961B Impact Wrench

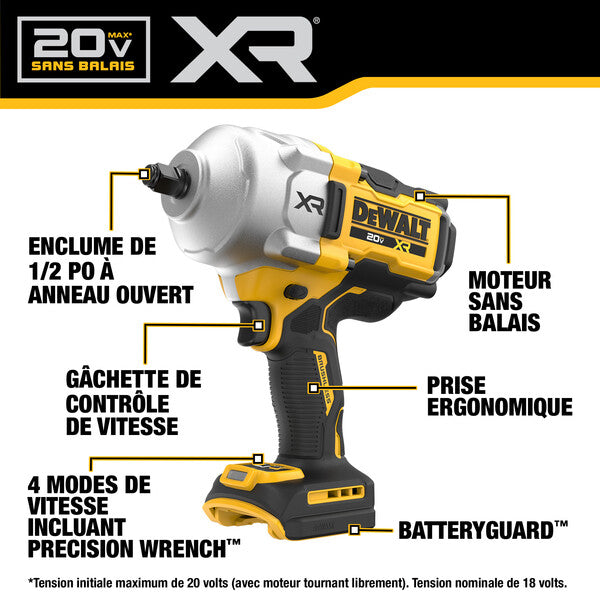

Brushless motor with 1/2 in hog ring anvil. Precision Wrench mode and 4 speed settings. Battery and charger sold separately.

1x Operating Manual

Guide covering setup, speed settings, safety and maintenance.

Benefits of the DCF961B Impact Wrench

High Fastening Torque

1200 ft-lbs of maximum torque, ideal for the most demanding fastening applications.

Precise Control

Precision Wrench mode helps prevent overtightening and fastener ejection during removal.

Versatility

4 speed settings let you match power to the application, from light mechanical work to heavy construction.

20V MAX Compatibility

Compatible with the full range of DeWalt 20V MAX batteries and chargers, ideal if you already own tools from the lineup.

Recommended Complementary Products

This tool is sold without a battery or charger. Here are the essential accessories:

• DeWalt 20V MAX 5Ah Battery (DCB205) - Recommended capacity for intensive professional use. Sold separately

• DeWalt 12V/20V MAX Lithium Charger - Fast charger compatible with all DeWalt 20V MAX batteries. Sold separately

• JET 610302 1/2'' 10pc SAE Impact Socket Set - Essential complement to get the most out of your impact wrench. Sold separately

First Use

Preparing your DCF961B impact wrench:

1. Charge the Battery

   Fully charge a compatible DeWalt 20V MAX battery before first use.
2. Install the Socket

   Insert the socket onto the 1/2 in hog ring anvil until it clicks into place.
3. Choose the Speed

   Select one of the 4 speed settings based on the fastener, or Precision Wrench mode for greater control.
4. No-load Test

   Trigger the tool with no load to get familiar with its response before real use.

Regular Maintenance

To maximize the lifespan of your impact wrench:

After each use:

• Remove the socket and wipe down the tool to clear dust and debris
• Check that the motor's ventilation slots are not blocked
• Remove the battery if the tool won't be used for an extended period

Battery:

• Recharge the battery before it's fully drained to extend its lifespan
• Keep battery contacts clean and dry

Cleaning and Maintenance

Periodic maintenance:

1. Anvil and Sockets

   Inspect the hog ring anvil for wear or excessive play, which can affect fastening accuracy.
2. Housing and Handle

   Clean with a slightly damp cloth, never with water directly on the tool.
3. Motor Ventilation

   Use compressed air to clear dust buildup from the ventilation slots, essential on a brushless motor.

Recommended products: dry cloth, compressed air.

Avoid: water, solvents, or submerging the tool.

Safety Precautions

For your safety:

• Remove the battery before changing sockets: prevents accidental startup.
• Use only impact-rated sockets: standard sockets can crack under this tool's high torque.
• Wear safety glasses: debris can be thrown during fastening or removal.
• Match speed to the fastener: too high a setting on a small fastener can damage or break it.
• Never exceed the tool's rated torque: stay within 1200 ft-lbs to avoid damaging fasteners or the structure being worked on.

Storage Tips

Short-term storage:

Store the tool in a dry place, battery removed if inactive for more than a few days.

Long-term storage (1+ month):

Clean the tool, remove the battery, and store it in its case or a dry place away from dust.

Winter storage in Canada:

Lithium-ion batteries lose performance in the cold. Store the battery and tool at room temperature and avoid leaving them in an unheated vehicle.

Équipement Industriel Polar Warranty Coverage

In addition to the manufacturer warranty, your purchase is protected by our 30-day satisfaction guarantee.

DeWalt Warranty Coverage

• 3-year limited warranty covering all manufacturing and material defects
• 1 year of free service from DeWalt including maintenance under conditions
• 90-day satisfaction guarantee from DeWalt allowing a free return
• Warranty begins on the original purchase date (keep your invoice as proof)

What's Covered

DeWalt and Équipement Industriel Polar limited warranty covers:

Manufacturing Defects

Assembly or production issues discovered during the warranty period.

Material Defects

Defective material in the motor, anvil or housing. A part that fails prematurely will be replaced free of charge.

Mechanical Malfunctions

Trigger, brushless motor or striking mechanism issues not caused by negligence or poor maintenance.

What DeWalt will do:

• Free repair: defective parts replaced at no charge
• Full replacement: if repair is not possible or not economical

Warranty Exclusions

The warranty does NOT cover:

• Normal Wear: anvil, seals and internal parts that wear naturally with intensive use.
• Non-Impact-Rated Sockets: damage caused by using standard sockets not built for high torque.
• Physical Damage: drops, water immersion, or overload beyond rated torque.
• Maintenance Neglect: dust buildup never cleared from ventilation slots.
• Unauthorized Modifications: any repair by a non-authorized DeWalt technician voids the warranty.

Claim Procedure

How to file a claim in 3 steps:

Step 1: Documentation

Keep your original Équipement Industriel Polar invoice as proof of purchase date.

Step 2: Contact

• Équipement Industriel Polar customer service (30-day returns):
• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• DeWalt Canada service (manufacturer warranty): dewalt.ca/support

Step 3: Return or Repair

Pack the tool and ship it to the address provided, or bring it to an authorized DeWalt service center for warranty repair.
