For operators working in maintenance or body shop applications who are looking for heavy-duty hammers, the CP714 Series provides the heavy-duty hammer you need.

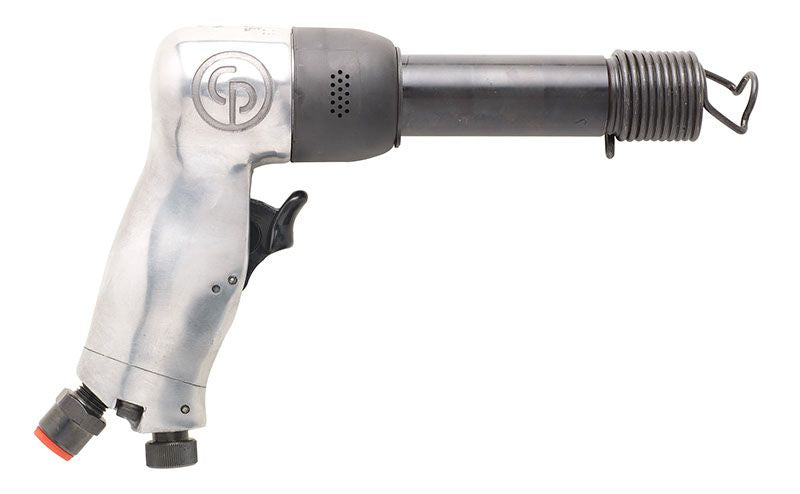

Enjoy this robust pistol-grip hammer, designed for general maintenance and bodywork. This model belongs to the CP714 series, which consists of two models: the tool itself and the kit.

Technical specifications

Imperial Metric

Bore diameter

14 mm

Length (L)

190 mm

Stroke

80 mm

Weight

1.51 kg

Air consumption under load

4 l/s

Air Inlet Thread Size (in)

1/4

Maximum dynamic air working pressure

6.3 bars

Minimum pipe diameter (16 foot pipe length)

0.38 in

Minimum pipe diameter (5 m pipe length)

10 mm

Beats per minute

2000

Chisel rod

Round

Chisel Shank Diameter (in)

0.401

Chisel shank diameter (mm)

10.2

Energy

4.7 J

Maximum rivet size (in)

1/4

Maximum rivet size (mm)

6.4

Maximum Steel Rivet Size (in)

3/16

Maximum size of steel rivets (mm)

4.8

Starting system

Triggering

Sound power

102.5 dB(A)

Sound pressure

91.5 dB(A)

Vibrational uncertainty-K

5.8 m/s²

Vibration

16.2 m/s²

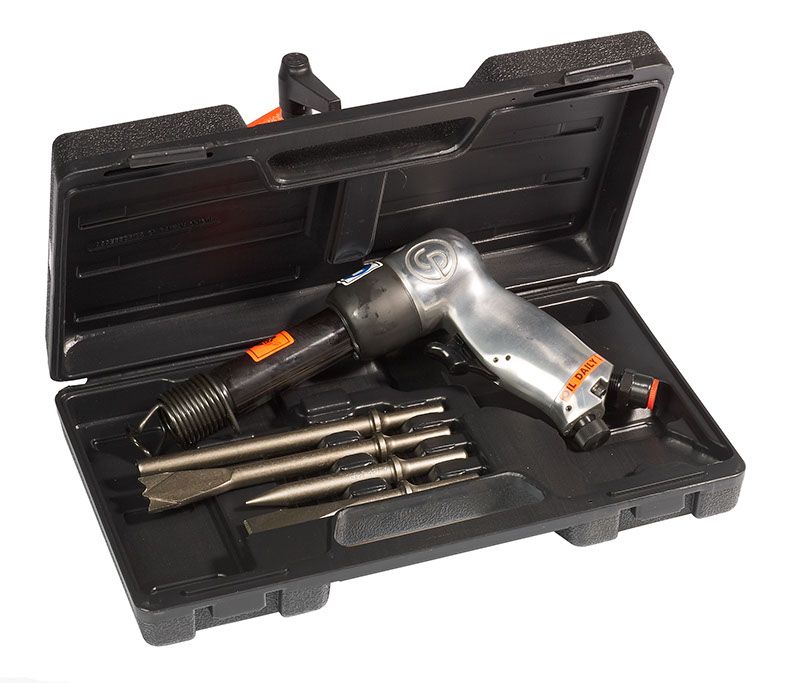

CP714 Kit

T025364

KIT - ROUND AIR HAMMER 0.401" (10.2 mm)

Dimensions 20.2 x 33.7 x 6.8 cm

Weight 2.49 kg

---
