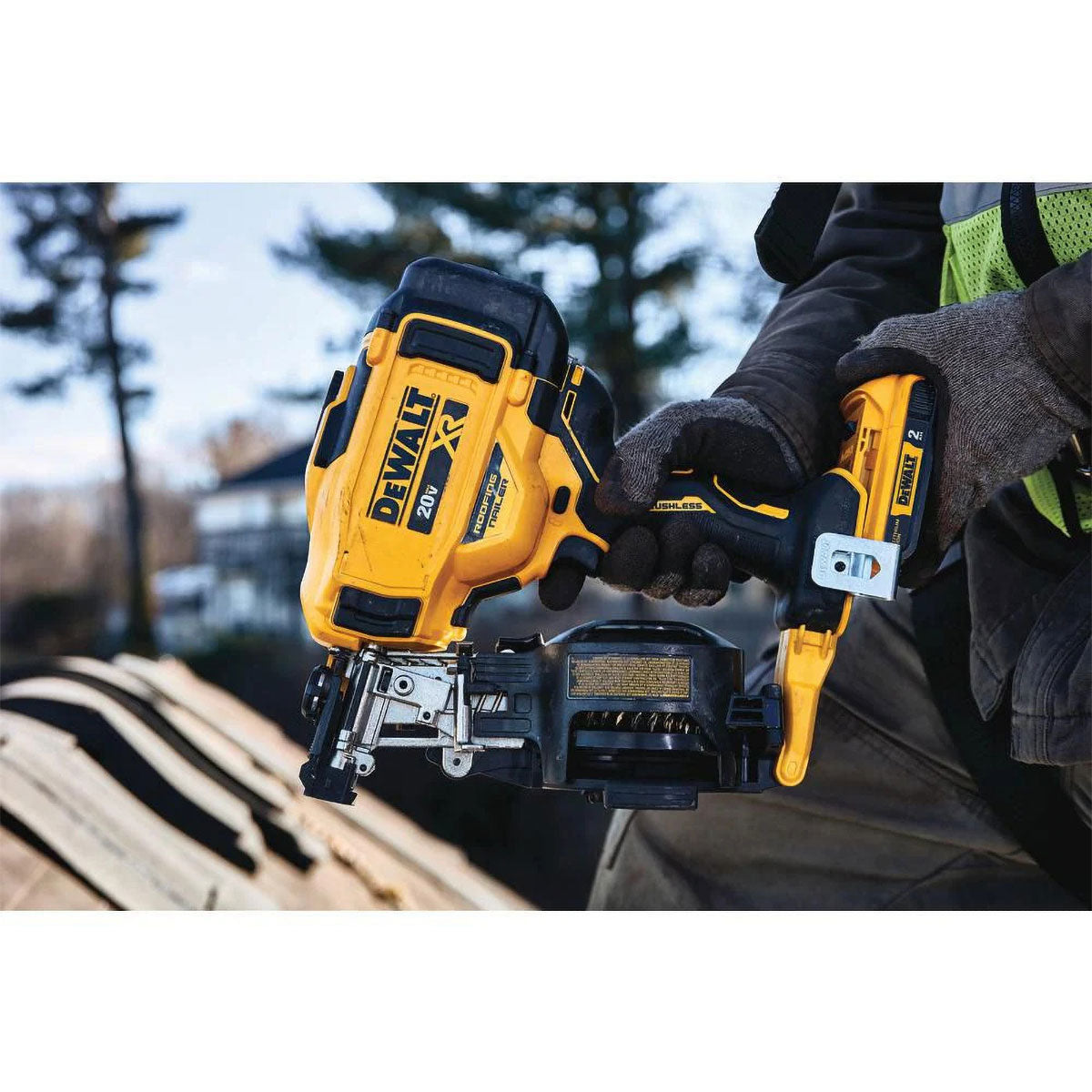

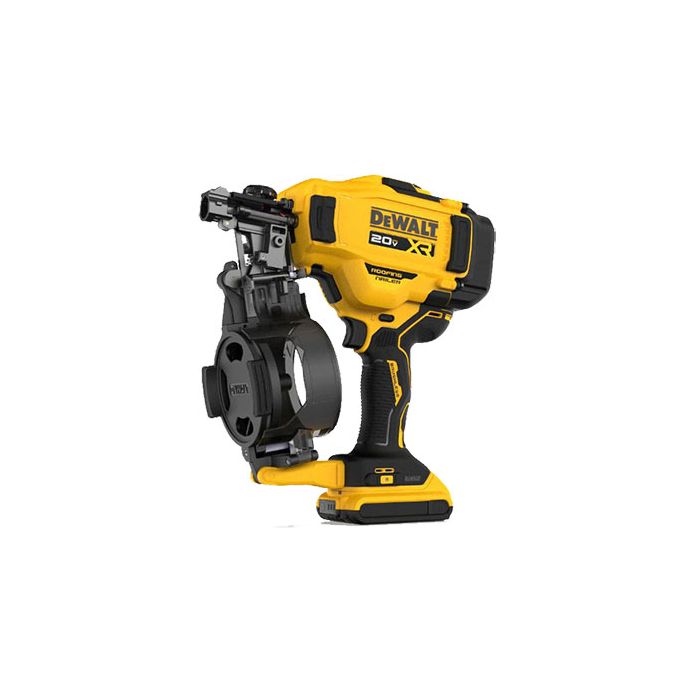

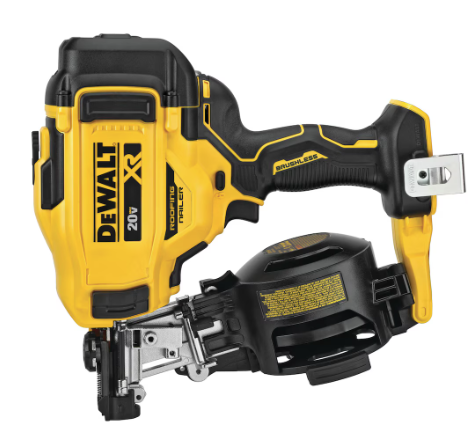

DeWalt DCN45RNB 20V MAX Cordless Roofing Nailer (Tool Only)

Contenu de la cloueuse DeWalt DCN45RNB

La cloueuse à toiture DCN45RNB est vendue outil seulement. L'ensemble comprend l'outil et un accroche-ceinture. La batterie et le chargeur sont vendus séparément.

Inclus dans votre commande :

• Cloueuse à toiture DCN45RN 20V MAX : Cloueuse à bobine sans fil 15 degrés avec moteur sans balai. Accepte les clous spirale de 3/4 po à 1-3/4 po. Compatible avec toutes les batteries DeWalt 20V MAX.
• Accroche-ceinture : Permet de transporter l'outil à la ceinture entre les rangées de bardeaux et de libérer les deux mains lors des déplacements sur le toit.

Avantages de la DCN45RNB

• Liberté totale sur le toit : Sans compresseur ni tuyau, vous vous déplacez librement d'un versant à l'autre. Aucune cartouche de gaz à remplacer, aucun câble à enjamber.
• Autonomie par charge élevée : Jusqu'à 500 clous par charge en mode bump (batterie 2Ah), soit environ un carré de bardeaux. Compatible avec les batteries haute capacité 5Ah et 6Ah pour les longues journées.
• Compatibilité DeWalt 20V MAX : Partage les mêmes batteries que vos perceuses, visseuses à chocs et autres outils DeWalt 20V. Pas d'investissement dans un nouveau système.
• Précision de placement : Le réglage de la profondeur sans outil et le mode séquentiel permettent de travailler avec soin dans les zones étroites, en rive ou près des solins.

Accessoires complémentaires recommandés

La DCN45RNB fonctionne sans batterie ni chargeur inclus. Ajoutez les accessoires DeWalt 20V MAX suivants pour compléter votre équipement :

• Batterie DeWalt 20V MAX 5Ah DCB205 — Batterie haute capacité pour les longues journées de pose. Vendue séparément.
• Batterie DeWalt 20V MAX 2Ah Pack de 2 — Idéal pour les travaux de réparation. Vendu séparément.
• Chargeur DeWalt 12V/20V MAX DCB115 — Chargeur standard compatible avec toutes les batteries 20V MAX. Vendu séparément.

First Use

1. Initial Inspection - Unpack the DCN45RNB nailer and visually inspect it to make sure no damage occurred during shipping. Check that the magazine is empty before any handling.
2. Installing the Battery - Insert a charged DeWalt 20V MAX battery (sold separately) until you hear it click into place. Check the charge level using the battery's indicator.
3. Loading the Magazine - Load the coil of spiral nails, 3/4 in. to 1-3/4 in., according to the thickness of the shingle being installed, following the insertion direction marked on the magazine.
4. Function Test - Test the tool in sequential mode on a scrap piece of wood before using it on the job site, to confirm the safety contact tip and depth adjustment are working correctly.

Regular Maintenance

Weekly Checks

• Inspect the magazine for obstructions or damage and make sure the nail feed mechanism moves freely
• Check the condition of the nose and the safety contact tip
• Check the tool-free depth adjustment

Battery Management

• Recharge the battery before long installation days
• Use only compatible DeWalt 20V MAX batteries and chargers

Performance Monitoring

• Note any drop in firing rate or frequent jams
• Check that the brushless motor is operating properly

Cleaning and Maintenance

Never spray or otherwise apply lubricant or cleaning solvent inside the tool: this can seriously affect its lifespan and performance. Clean the exterior with a dry cloth, without solvents or harsh chemicals.

Periodically inspect the nail magazine for obstructions or damage, and make sure the feed mechanism moves freely.

Remove shingle debris and accumulated dust around the nose and safety contact tip after each use on dusty job sites.

Precautions

For your safety:

• Remove the battery before clearing a jam or performing any maintenance
• Never point the tool at yourself or another person, even without a battery installed
• Wear safety glasses at all times during use
• Check the safety contact tip before each use to confirm it is working correctly
• Use only nails recommended by DeWalt for this tool

Storage Tips

Short-term storage: Keep the tool out of direct sunlight. Excessive heat can deteriorate the rubber bumpers and other parts, increasing maintenance needs.

Long-term storage: Remove the battery and any remaining nail coil before extended storage. Store the tool in a dry place, away from humidity.

Winter storage in Canada: Avoid leaving the tool in an unheated vehicle during winter. Let the tool and battery acclimate to room temperature before use in extreme cold to preserve components and firing accuracy.

Équipement Industriel Polar Warranty Coverage

Équipement Industriel Polar backs your purchase with a 30 day satisfaction guarantee. If the tool doesn't fit your needs, you can return it hassle free.

DeWalt Warranty Coverage

• 3 years: DeWalt limited warranty against defects in materials and workmanship.
• 1 year: Free service including maintenance performed by an authorized DeWalt service center.
• 90 days: Satisfaction guarantee with a full refund if the tool doesn't meet your expectations.

What's Covered

The DeWalt warranty covers the following on the DCN45RNB roofing nailer:

• Manufacturing defects: Any material or workmanship defect present at the time of manufacture is covered.
• Brushless motor: The brushless motor is covered against premature failure related to manufacturing.
• Nail drive mechanism: The drive system and magazine are covered for breakage not related to normal wear.
• Electronic components: The tool's internal circuitry is covered against manufacturing defects.

What DeWalt will do:

• Repair the tool at no charge if the defect is covered.
• Replace the tool with an equivalent model if repair isn't possible.
• Supply the necessary replacement parts through an authorized service center.

Warranty Exclusions

The warranty does NOT cover:

• Normal wear: Springs, seals, and moving parts that wear down with regular use.
• Physical damage: Drops, impacts, or breakage caused by improper handling on the job site.
• Misuse: Use with nails not compatible with or recommended by DeWalt.
• Extreme conditions: Damage from prolonged exposure to moisture, excessive dust, or temperatures outside normal operating range.
• Neglect: Lack of basic maintenance or unauthorized modifications to the tool.

Claim Procedure

How to file a claim:

Step 1: Documentation

• Original proof of purchase
• Tool serial number
• Detailed description of the issue

Step 2: Contact

Équipement Industriel Polar Customer Service (30 day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec City
• Hours: Monday-Friday 8am-5pm

DeWalt Canada Service (manufacturer warranty):

DeWalt Customer Service & Support

Step 3: Return

Pack the tool in its original packaging or an equivalent container with proof of purchase, then ship it to the designated service center.

Step 4: Processing

Processing time is typically 5 to 10 business days depending on the DeWalt service center.
