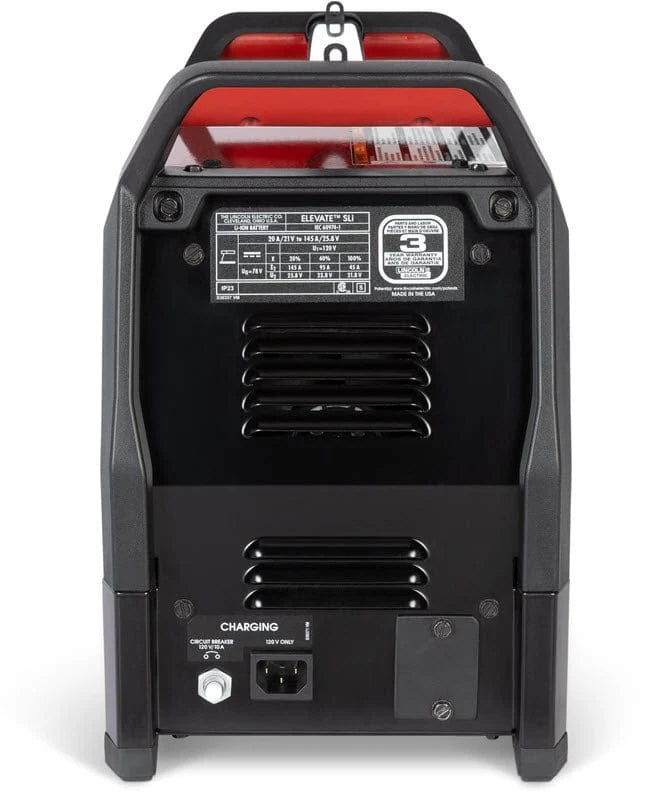

LINCOLN ELEVATE SLI BATTERY WELDER LINCOLN K4706-1

Contents of the Lincoln Elevate SLi Welder:
This package includes everything you need for autonomous welding, right out of the box.

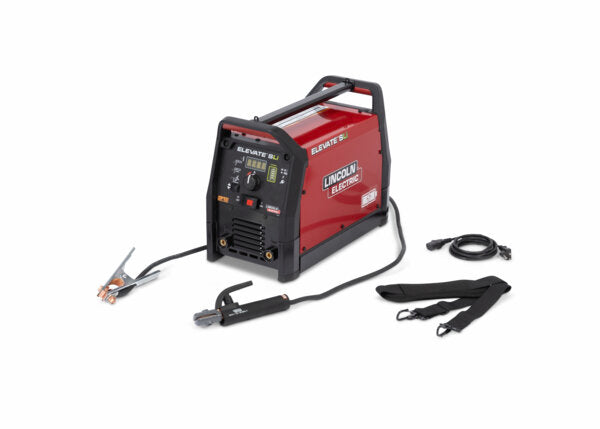

Included in your order:
- Lincoln Elevate SLi Welder (K4706-1): integrated battery welder, 145A, Stick and TIG compatible.
- 200A Industrial Electrode Holder: with cable and Twist Mate adapter, for quick and secure connection.
- Ground Cable with Clamp: to complete the welding circuit on all your parts.
- Adjustable Shoulder Strap: facilitates transport of the device on the job site.
- 8-foot 120V Power Cord: to recharge the integrated battery from a standard outlet.

Pack Advantages:
Complete autonomy on site: the integrated LFP battery eliminates the need for a generator or extension cord, even in the most remote locations.
Fast charging: a full charge in 60 minutes on a standard 120V outlet provides up to 21 electrodes of autonomy.
Stick and TIG Versatility: a single device to cover two welding processes, with touch-start TIG.
Optimal Portability: at 15 kg with an adjustable strap, this portable welder moves as easily as a toolbox.

Recommended Complementary Accessories:
These accessories complement your Lincoln Elevate SLi welder for optimal use on the job site.
- Compatible 6010 and 7018 electrodes, in various formats depending on your work.
- Auto-darkening welding helmet, sold separately.
- Gloves and protective clothing for arc welding, sold separately.

First Use:

Before your first welding session, follow these simple steps:
1. Charge the battery to full capacity: plug in the supplied 120V cord and wait for the 60-minute charging cycle to complete.
2. Install the electrode holder and ground cable: firmly attach them to the device's output terminals.
3. Choose your mode (Stick or TIG) and adjust the amperage according to the electrode used.
4. Perform a test weld on a scrap piece before starting your work.

Regular Maintenance

Simple maintenance extends the life of your battery welder.

After each use:

- Wipe the casing to remove dust and welding residue.
- Store the ground cable and electrode holder without excessive bending.
- Recharge the battery even if it's not completely empty.

Battery Management

Avoid repeatedly fully discharging the LFP battery.
- Recharge the device after each job, even short ones.

Cleaning and Maintenance:

1. Exterior casing: clean with a dry or slightly damp cloth, never use solvents.
2. Ventilation openings: dust with low-pressure compressed air to prevent overheating.
3. Connection terminals: check for corrosion and tighten if necessary.

Precautions for Use:

For your safety:
- Avoid excessive humidity: the IP23S rating protects against light rain, not immersion.
- Never block the ventilation openings: overheating can damage the battery.
- Always wear a welding mask and suitable gloves: the electric arc produces intense light and projections.
- Never modify the original electrode holder or wiring: this voids the manufacturer's warranty.

Storage Tips:

Short-term storage:
- Store the welder in a dry, dust-free place between jobs.

Winter storage in Quebec:

Avoid leaving the LFP battery in an unheated vehicle during extreme cold.
- Recharge the device before a prolonged storage period to preserve battery health.

Polar Industrial Equipment Warranty Coverage

Polar Industrial Equipment offers a 30-day satisfaction guarantee on this purchase. You may return the device within this period if it does not meet your expectations.

Lincoln Electric Warranty Coverage:

- Duration: 3 years on the Lincoln Elevate SLi Welder (K4706-1).
- Warranty Type: Parts and labor against manufacturing defects.
- Warranty applicable to purchases from an authorized Lincoln Electric dealer.

What Is Covered:

- Manufacturing defects: any component defective out of the factory.
- Integrated LFP battery: covered against manufacturing defects during the warranty period.
- Internal electronic circuits: controllers and charging systems.

What Lincoln Electric will do:

- Repair or replace defective parts.
- Provide technical support for remote diagnosis.

Warranty Exclusions:

The warranty does not cover:
- Normal wear and tear: electrodes, cables, and connectors that wear out with use.
- Physical damage: drops, impacts, or breakage caused by improper handling.
- Misuse: exceeding current limits or use not in accordance with the user guide.
- Extreme conditions: immersion in water or exposure to humidity exceeding the IP23S rating.
- Negligence: lack of basic maintenance or unauthorized modification of the device.

Claim Procedure

How to make a claim:

Step 1: Documentation
Keep your purchase invoice, the device's serial number, and a description of the problem encountered.

Step 2: Contact
Polar Industrial Equipment Customer Service (30-day returns):
- Phone: 1-800-567-3206
- Email: info@equipementpolar.com
- Address: 3425 Boulevard Wilfrid-Hamel, Quebec
- Hours: Monday to Friday, 8 AM to 5 PM

Lincoln Electric Canada Service (manufacturer's warranty):
Contact Lincoln Electric support via lincolnelectric.com for any claim related to the manufacturer's warranty.

Step 3: Return
Pack the device in its original packaging, with all included accessories, to prevent any damage during transport.

Step 4: Processing
Processing time varies depending on the nature of the claim. Polar Industrial Equipment ensures follow-up until full resolution.
