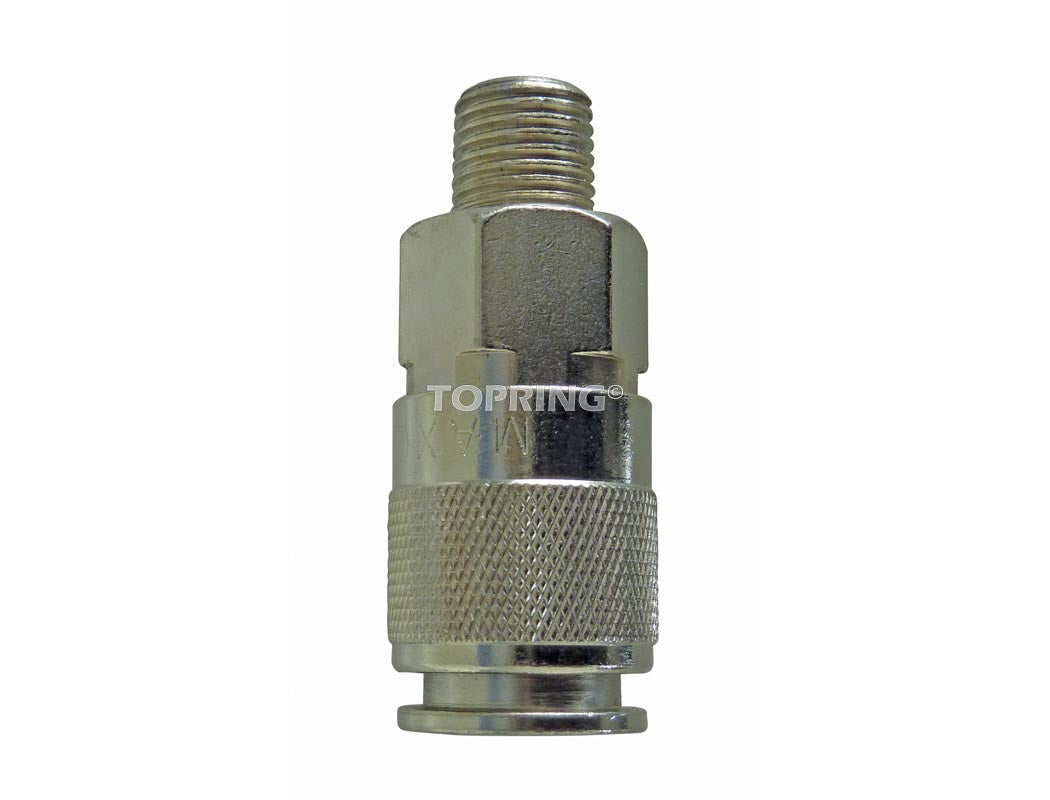

UNIVERSAL QUICK SHOT 1/4"NPT

Technical specifications and certifications

• Thread: 1/4 (M) NPT
• Maximum operating pressure: 200 PSI
• Operating temperature: -40 to 100°C
• Airflow: 50 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Nickel-plated steel
• Socket: Nickel-plated steel
• Valve: Nickel-plated steel
• Valve spring: Zinc plated steel
• Locking mechanism: Hardened and nickel-plated steel balls
• Seal: Nitrile rubber

Features and Benefits

• Accepts European type ends (CEJN 320)
• ULTRAFLO fittings increase the performance of air tools
• Better air flow than most similar fittings
• Energy savings, increased productivity and higher efficiency
• Guard device that prevents accidental disconnections when the connector is pulled across the ground or over obstacles
• Automatic connection
• Easy connection, even under pressure
• Efficient and secure connection with ball locking mechanism

Applications

• Air tools requiring high air flow
• Mechanical maintenance, tire and painting workshops (HVLP)
• Roof construction and covering
