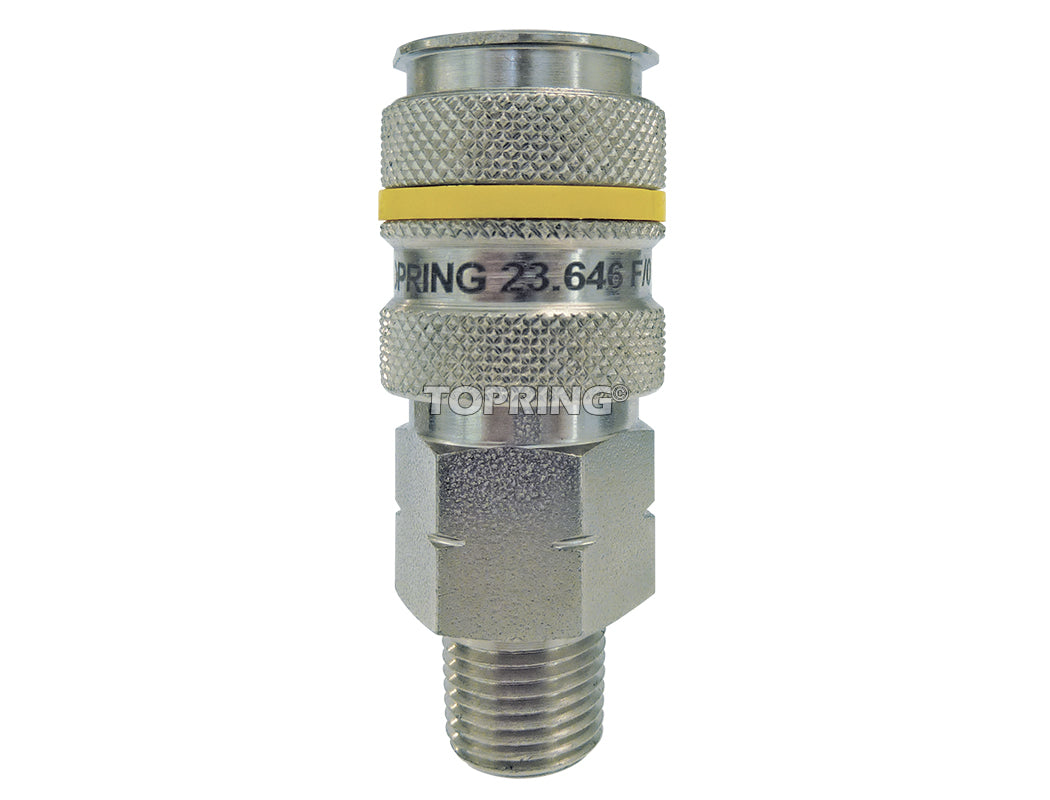

QUICKSILVER CONNECTION (ARO 210) 1/4(M) NPT

Technical specifications and certifications

• Thread: 1/4 (M) NPT
• Maximum operating pressure: 362 PSI
• Operating temperature: -20 to 60°C
• Airflow: 44 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Zinc plated steel
• Guard: Zinc plated steel
• Valve: Acetal
• Socket: Zinc plated steel
• Valve spring: Stainless steel
• Locking mechanism: Hardened steel balls
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept ARO 210 type ends
• Very high performance and corrosion resistance
• Easy automatic connection, even under pressure
• Guard device preventing accidental disconnections
• Knurled socket for better grip
• Secure connection with ball lock mechanism

Operation and installation

TECHNICAL ADVICE
THE YELLOW RING Indicates that it is an ARO 210 type fitting

Applications

• Compressed air distribution systems
• Air tools
