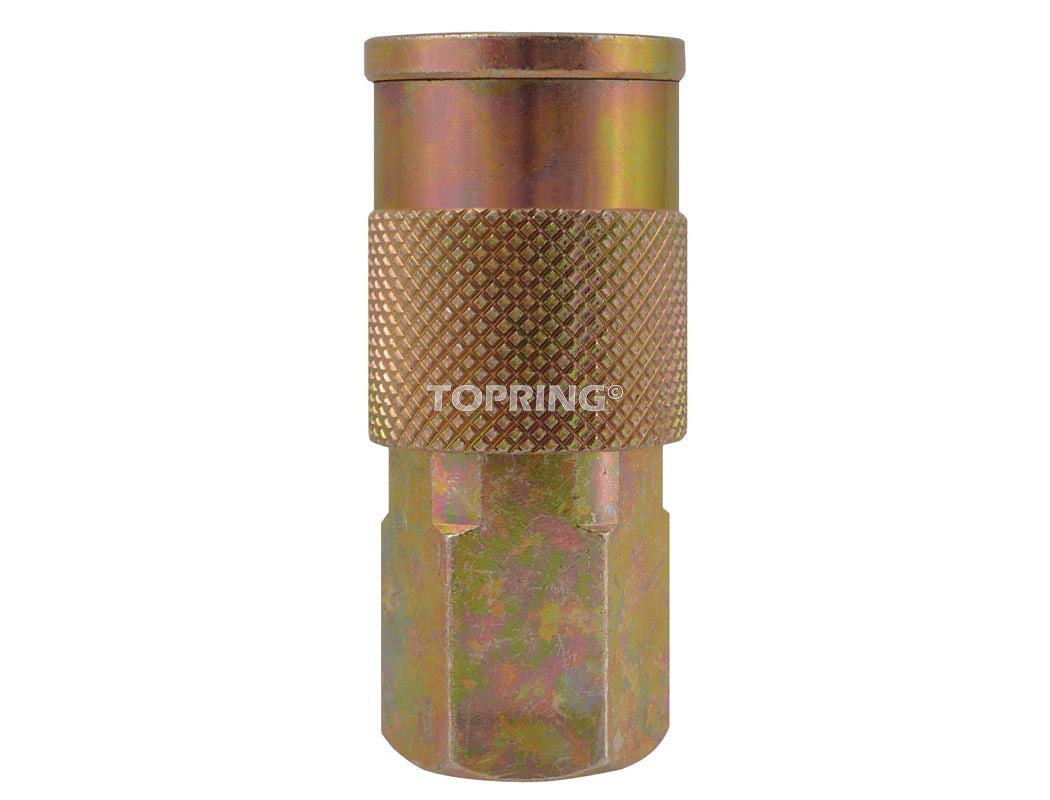

IND 1/4 NPT FEM CONNECTION

Technical specifications and certifications

• Thread: 1/4 (F) NPT
• Maximum operating pressure: 250 PSI
• Operating temperature: -40 to 107°C
• Airflow: 56 SCFM at 100 PSI inlet with 10 PSI pressure drop

Materials) :
• Body: Zinc plated steel
• Lock nut: Zinc plated steel
• Socket: Zinc plated steel
• Valve: Nickel-plated steel
• Valve spring: Zinc plated steel
• Locking mechanism: Hardened and nickel-plated steel balls
• Seal: Nitrile rubber

Features and Benefits

• Designed to accept 3/8 INDUSTRIAL type ends (AA-59439)
• Robust, high-efficiency design
• Socket manually operated to connect or disconnect the plug
• Ball lock mechanism ensures secure connection
• High air flow
• Guard device to prevent accidental disconnections

Applications

• Compressed air distribution systems
• Air tools
