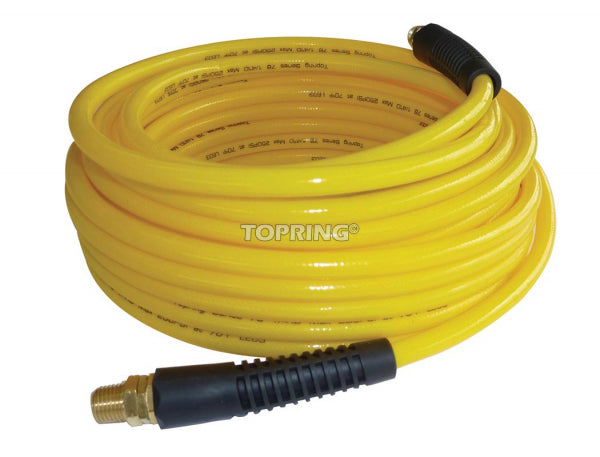

TOPRING 78.118 AIR HOSE 1/4'' X 50'

Technical specifications and certifications

• Hose length: 50 ft
• Pipe ID: 1/4 in.
• Connections (M): 1/4 NPT
• Maximum operating pressure: 300 PSI
• Operating temperature: -40 to 100°C
• Electrical conductivity: Non-conductive at 1000 volts DC

Materials) :
• Shell and tube: ester-based polyurethane
• Reinforcement: synthetic spiral braids
• Fittings: Brass

Features and Benefits

• Excellent flexibility
• Lighter, more durable and with greater chemical resistance than any other air hose materials
• Ergonomic design contributing to the prevention of work accidents
• 75% lighter than rubber pipes and 50% lighter than PVC pipes
• Excellent resistance to oils, greases and solvents
• Excellent resistance to aging, UV rays and ozone
• Very high resistance to abrasion
• Excellent cut resistance
• Reusable full-flow swivel fittings allow maximum directional flexibility
• Protective sheath at both ends to increase the lifespan of the hose
• Anti-marking coating
• No presence of silicone
• RoHS compliant

Caution

• Dangerous whiplash can be prevented by adding a HOSEGUARD® safety valve to the compressed air hose. (See series 58)

Applications

• Excellent for air tools such as nailers and staplers, compressed air assembly lines, painting equipment
