Fein Power Tools | SKU:
FEI-JMU137QW
1-3/8 UNIVERSAL MAGNETIC DRILL
Regular price
CA$2,486.00
Unit price
/
Unavailable
Shipping calculated at checkout.
1-3/8 UNIVERSAL MAGNETIC DRILL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping
Orders $150+
30-Day Returns
Satisfaction guaranteed
Fast Delivery
2-5 days Canada
1-3/8 UNIVERSAL MAGNETIC DRILL
Regular price
CA$2,486.00
Unit price
/
Unavailable
Description
Description

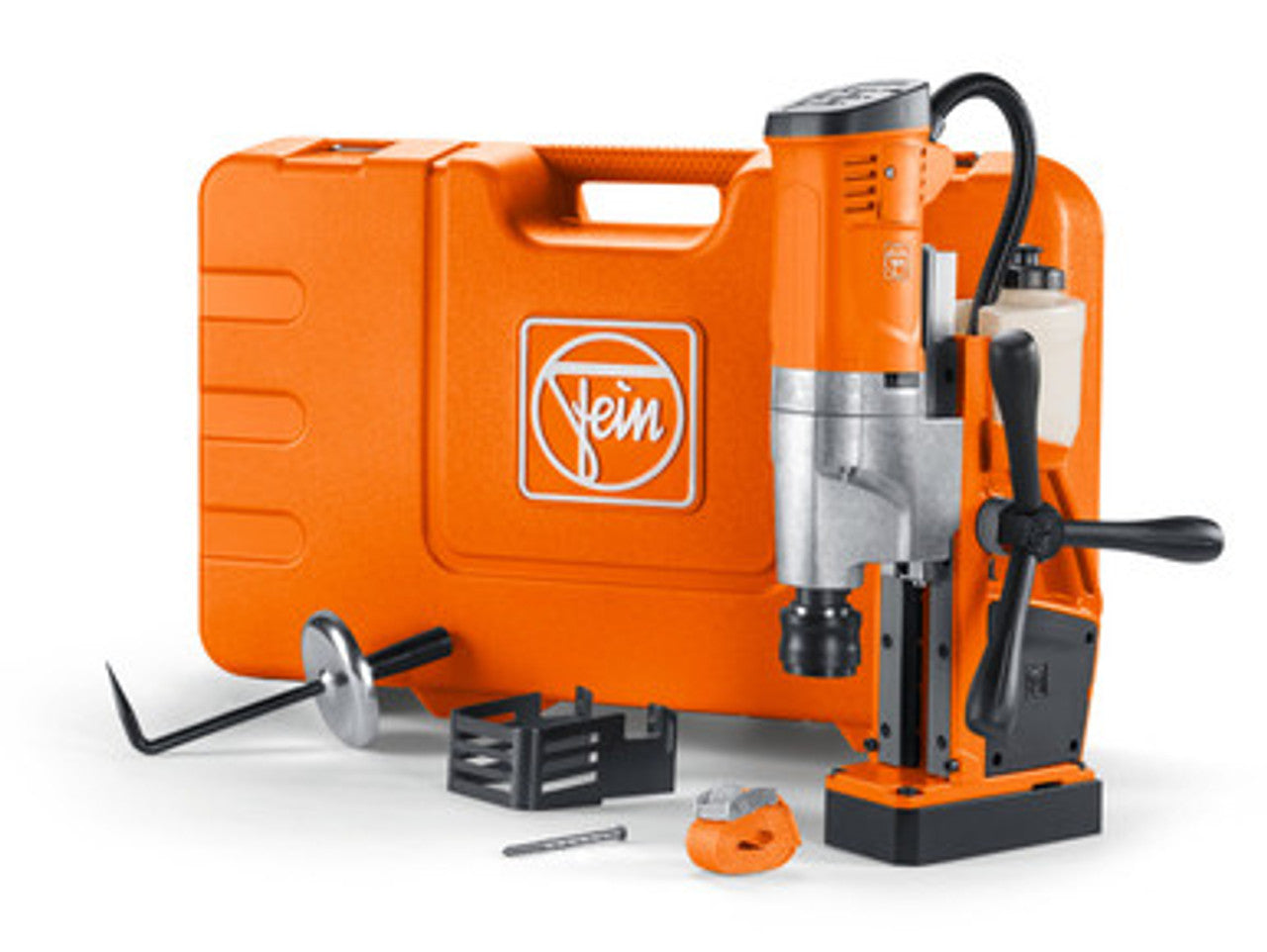

JMU 137 QW
JMU 137 QW
Universal magnetic drill bit up to 1-3/8 in [35 mm]
Small, universal, long-stroke, single-speed magnetic drill with forward/reverse rotation and maximum functionality for flexible work on the construction site.
Product number: 7 270 54 61 12 0
Technical data
Technical data
Energy consumption
1100 W
Output power
550 W
Full charge speed
130 - 520
Carbide cutter max. diam.
1-3/8 [35] in [mm]
HSS milling cutter max. diam.
1-3/8 [35] in [mm]
Maximum drilling depth of the cutter
2 [50] in [mm]
Twist drill max. diam.
5/8 [16] in [mm]
Tapping
1/2"
Max. milling diameter
1-1/4 [31] in [mm]
Max. bore dia.
5/8 [16] in [mm]
Knife holder
3/4" straight shank
Changing the cutter
tool-free
Stroke
5-5/16 [135] in [mm]
Total travel range
10-1/4 [260] in [mm]
Magnetic holding force
2,248 [10,000] lb [N]
Cable with plug
13.1 [4] ft [m]
Weight
23.59 [10.70] lb [kg]
Vibration and noise emission values
Sound pressure level LpA
82.3 dB
Measurement uncertainty of the measured value KpA
5 dB
Sound power level LWA
95.3 dB
Measurement uncertainty of the measured KWA value
5 dB
Maximum sound value LpCpeak
95.9 dB
Measurement uncertainty of the measured value KpCpeak
5 dB
Vibration value 1 αhv 3 ways
αh,D <2.5 m/s²
Measurement uncertainty of the measured value Kα
1.5 m/s²
