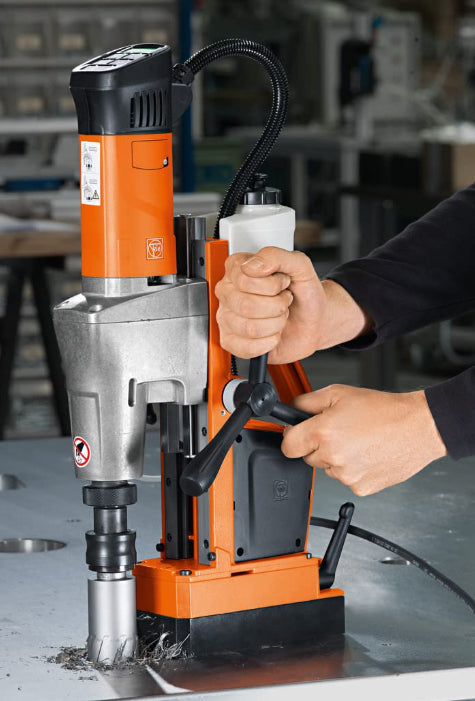

Fein JMU137PQW Universal Magnetic Core Drill 1-Speed

What's Included with the Fein JMU137PQW Magnetic Drill Kit

This complete kit includes everything you need to start drilling right away, with coolant and safety accessories plus a carrying case.

Included in your order:

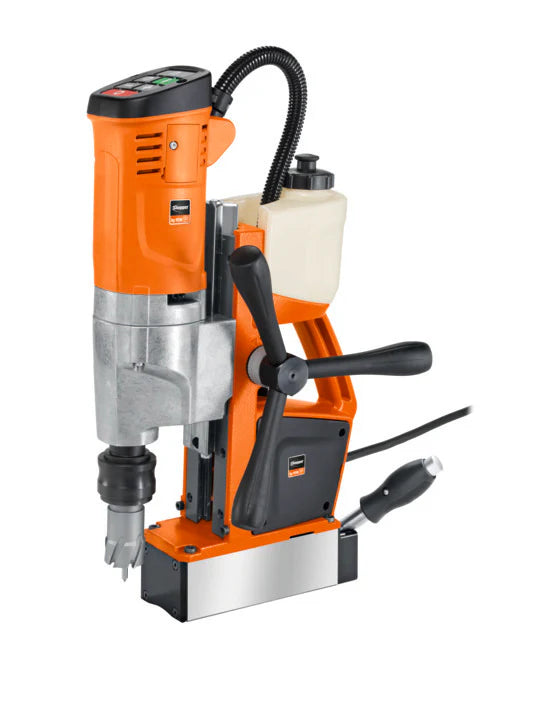

1x Fein JMU137PQW Magnetic Drill

Main unit with high-performance 1,010 W motor, forward/reverse rotation, and magnetic holding force display.

1x Coolant Reservoir

Continuously feeds the annular cutter to extend its life and improve cut quality.

1x Safety Strap

Secures the drill to the workpiece for safe drilling in vertical or overhead positions.

1x Chip Hook and Chip Guard

Remove collected chips and protect the operator during drilling.

1x Pilot Pin

Ensures precise cutter positioning before drilling begins.

1x Drift

Makes it easy to remove pilot pins and accessories after use.

1x Carrying Case

Stores and protects the drill and all its accessories between job sites.

Drill Advantages

Durability

Extra-long stroke design and reinforced construction for heavy use in industry and on the job site.

Simplicity

The single-speed design with simple controls reduces the risk of operating errors on the job site.

Reliability

The motion sensor and speed memory function ensure safe, consistent drilling.

Recommended Complementary Accessories

To maximize the life of your magnetic drill, the following accessories are sold separately:

• 1-3/8 x 2 in. Fein Carbide Cutter FUSC251TCT - Annular cutter matching the JMU137PQW's maximum capacity, sold separately.
• 7/8 x 2 in. Fein Carbide Cutter FUSC227TCT - Common size for standard fastening holes, sold separately.
• Jancy 10208W Cutting Fluid - Water-soluble cutting fluid to refill the coolant reservoir, sold separately.
• Fein 2 in. Centering Pin 9/16-11/16 in. - Replacement centering pin for annular cutters, sold separately.

First Use

Before first use, follow these steps to prepare your magnetic drill:

1. Check the cord and housing - Inspect the power cord and housing for damage before plugging in the drill.
2. Fill the coolant reservoir - Fill the supplied coolant reservoir to protect the annular cutter from the first drilling operation.
3. Attach the safety strap - Secure the safety strap to the workpiece before drilling in vertical, horizontal, or overhead positions.
4. Install the cutter - Insert the annular cutter or twist drill bit into the Weldon shank before selecting the rotation direction.

Regular Maintenance

Regular maintenance extends the magnetic drill's service life and keeps drilling precision consistent.

After each use:

• Wipe down the housing and magnetic base to remove chips and cutting residue
• Empty and clean the coolant reservoir
• Store the drill in its carrying case

Magnetic base care:

• Keep the magnetic base surface free of rust and chips for optimal magnetic force
• Check that the work surface is clean and paint-free before each setup

Cleaning and Maintenance

Recommended periodic maintenance:

1. Motor cleaning - Remove metal dust from ventilation openings with low-pressure compressed air.
2. Motion sensor check - Periodically test the motion sensor to confirm proper operation.
3. Feed system lubrication - Apply a thin layer of lubricant to the feed rack for smooth movement.

Safety Precautions

For your safety:

• Non-magnetic work surface - Avoid using the drill on a surface that won't hold the magnet, as the setup would not be secure.
• Removing the cutter before full stop - Wait for the spindle to come to a complete stop before removing the cutter or chips.
• Drilling without the safety strap - Never drill overhead or in elevated positions without securing the supplied safety strap.
• Tool weight overhead - This drill weighs 27.56 lbs; ensure adequate support when drilling in overhead or vertical positions.

Storage Tips

Short-term storage:

• Store the drill in its case, away from moisture, between job sites

Long-term storage:

• Fully empty the coolant reservoir and store in a dry location at a stable temperature

Winter storage in Canada:

• Avoid storing the drill in an unheated area where the coolant fluid could freeze; drain the reservoir before winter

Équipement Industriel Polar Warranty Coverage

Équipement Industriel Polar offers a 30-day satisfaction guarantee on this magnetic drill, in addition to the full Fein manufacturer warranty.

Fein Warranty Coverage

• 1-year base warranty included automatically with purchase
• 3-year FEIN PLUS warranty by registering the tool within 3 months of purchase
• Coverage for machines, chargers, and lithium-ion batteries per manufacturer terms

What's Covered

The Fein warranty covers manufacturing and material defects on the JMU137PQW magnetic drill.

Material defects - Any part showing an original manufacturing defect.

Motor failure - Failure of the high-performance motor under normal operating conditions.

Electrical components - Switches, power cord, and magnetic force display.

Feed system - Feed handle, rack, and lift mechanism.

What Fein will do:

• Repair or replace the defective part free of charge at an authorized service center
• Supply the replacement parts needed for the repair

Warranty Exclusions

This warranty does NOT cover:

• Normal wear - Annular cutters and consumable drill bits.
• Physical damage - Drops, impacts, or a cracked housing.
• Misuse - Drilling on a non-magnetic surface or without the safety strap.
• Extreme conditions - Use underwater or in a corrosive environment not intended by the manufacturer.
• Neglect - Failure to maintain the coolant reservoir or magnetic base.

Claim Procedure

How to file a claim:

Step 1: Documentation

Keep your Équipement Industriel Polar invoice and the drill's serial number.

Step 2: Contact

Équipement Industriel Polar customer service (30-day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec City
• Hours: Monday-Friday 8am-5pm

Fein Canada service (manufacturer warranty):

• Phone: 1-800-265-2581
• Email: service@fein.ca

Step 3: Return

Pack the drill in its original case with all included accessories.

Step 4: Processing

The service center evaluates the claim and communicates repair or replacement timelines.
