50-Ton Air Hydraulic Truck Jack KTool KTI-63198

Contents of the KTool 50-Ton Jack

The KTool KTI-63198 air hydraulic truck jack ships ready to use. This professional truck jack is a complete lifting solution for heavy-duty shop and job site work.

Included in your order:

• KTool HD Air Hydraulic Truck Jack 50 Tons (KTI-63198) : complete jack with heavy-duty steel frame, hydraulic ram, and integrated pneumatic circuit. Rated capacity of 50 tons (100,000 lbs).

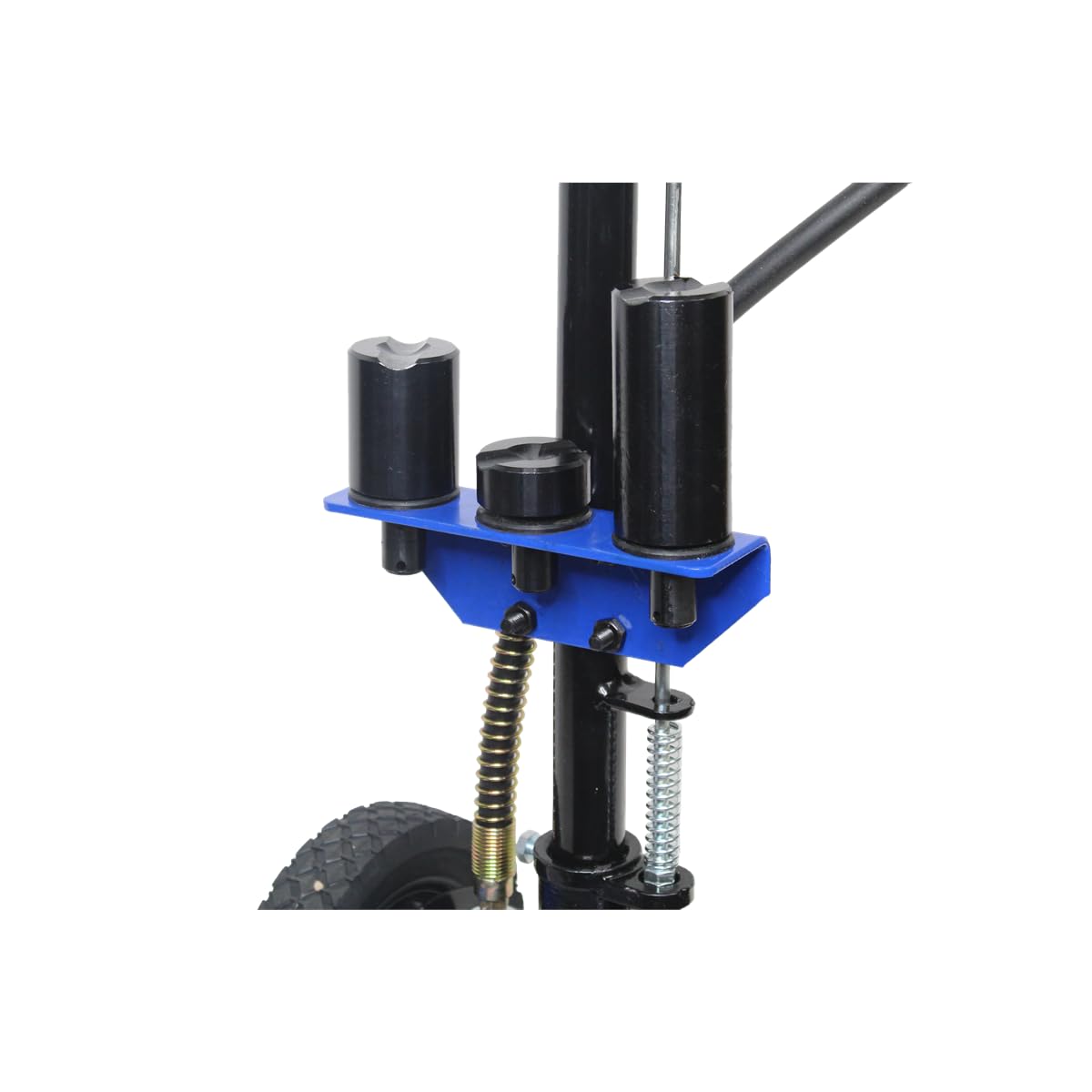

• Telescoping T-Handle : long handle with release knob at the top, functional in all working positions.

Advantages of the KTool KTI-63198 Jack

Maximum shop safety: Built-in load-limiting and bypass valves prevent use beyond rated capacity. ASME PASE/2014 compliant, this jack meets the strictest safety requirements for professional shop environments.

Tandem wheel versatility: The narrow chassis allows positioning the jack directly between tandem wheels without prior disassembly, reducing service time on dual-axle trucks.

Air-powered speed: The combined air-hydraulic system speeds up lifting using compressed air power while maintaining hydraulic precision for controlled, stable lifting.

Professional durability: Built for intensive shop use, the spring-activated self-retracting ram and solid steel construction deliver superior longevity even under daily heavy-duty use.

Recommended Complementary Accessories

For a complete and safe heavy-duty lifting setup, Équipement Polar recommends the following:

• Strongarm 030416 Jack Kit with Safety Stands : kit with safety stands essential for stabilizing any raised vehicle. Sold separately.
• Strongarm Bottle Jack 2 to 30 Tons : hydraulic bottle jack for precision lifting and complementary shop applications. Sold separately.

First Use

Before first use, perform a complete inspection and check the hydraulic fluid level.

1. Visual inspection: Check the integrity of all parts, absence of leaks, and T-handle attachment before putting the jack into service.
2. Hydraulic fluid check: Check the hydraulic fluid level and top up if needed with compatible hydraulic fluid. Do not exceed the maximum level.
3. Pneumatic connection: Connect the air hose to the inlet port. Check for airtight connection before pressurizing the compressor.
4. Dry-run test: Perform 2-3 lifting cycles with no load to bleed air from the hydraulic circuit and verify proper valve and ram function.

Regular Maintenance

After each use:

• Fully retract the ram before storing
• Disconnect the air hose
• Wipe down the frame and ram with a clean cloth
• Visually inspect for any oil leaks

Monthly checks:

• Check hydraulic fluid level and top up if needed
• Inspect seals for wear or leaks
• Lubricate moving parts (handle, pivot) with appropriate lubricant
• Test safety valves with a light load to confirm proper function

Safety Precautions

For your safety:

• Never exceed 50-ton capacity: The load-limiting valve protects the system, but excessive overloading can cause irreversible damage to the jack.
• Never work under a vehicle supported only by the jack: Always use rated safety stands to support the vehicle during work.
• Use on flat, stable surfaces: Position the jack on a solid, level surface. Avoid slopes and soft ground.
• Verify lift points: Consult the vehicle manufacturer's manual for approved lift points before each use.

Storage Tips

Short-term storage: Store the jack in a dry, covered area with the ram fully retracted and protected from impact. Apply a light coat of lubricant to exposed metal surfaces.

Canadian winter storage: Use hydraulic fluid rated for low-temperature performance. Avoid sudden temperature changes that can damage seals, and store in a frost-protected area.

Équipement Industriel Polar Warranty Coverage

Équipement Industriel Polar offers a 30-day satisfaction guarantee on all products. If you are not fully satisfied with your air hydraulic truck jack, contact our team for a fast, hassle-free resolution.

K Tool International Warranty Coverage

• Duration: 2 years on materials and workmanship
• Type: Limited manufacturer warranty
• Compliance: ASME PASE/2014 safety standards

What Is Covered

The warranty covers defects in materials and workmanship under normal operating conditions.

• Manufacturing defects: Any defect related to the manufacturing process or materials used in production.
• Hydraulic components: Valves, ram, and hydraulic circuit failure due to manufacturing defects.
• Structural components: Frame, handle, and mechanical parts that fail outside of normal use.
• Pneumatic circuit: Air supply system components that fail due to manufacturer defect.

What K Tool International will do:

• Repair or replace the defective product at their discretion
• Provide replacement parts for covered repairs

Warranty Exclusions

The warranty does NOT cover:

• Normal wear: Seals and friction surfaces subject to gradual wear from regular use.
• Physical damage: Deformation, cracks, or breakage caused by impact, dropping, or external force.
• Misuse: Damage resulting from exceeding rated capacity or non-compliant use.
• Maintenance neglect: Failures due to lack of regular maintenance as described in the user manual.

Claim Procedure

4-step process:

Step 1: Documentation

• Keep your Équipement Polar invoice or order confirmation
• Photograph the defect
• Note the purchase date and order number

Step 2: Contact

Équipement Industriel Polar Customer Service (30-day returns):

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec
• Hours: Monday-Friday 8am-5pm

Step 3: Return

Pack the product in its original packaging or suitable protective packaging. Include a copy of your invoice and a description of the defect before shipping.

Step 4: Processing

Once the return is received and inspected, Équipement Polar will contact you within 3-5 business days to confirm processing and the terms of replacement or refund.
