8 X 8 CONCEALED POST BASE CPT88Z

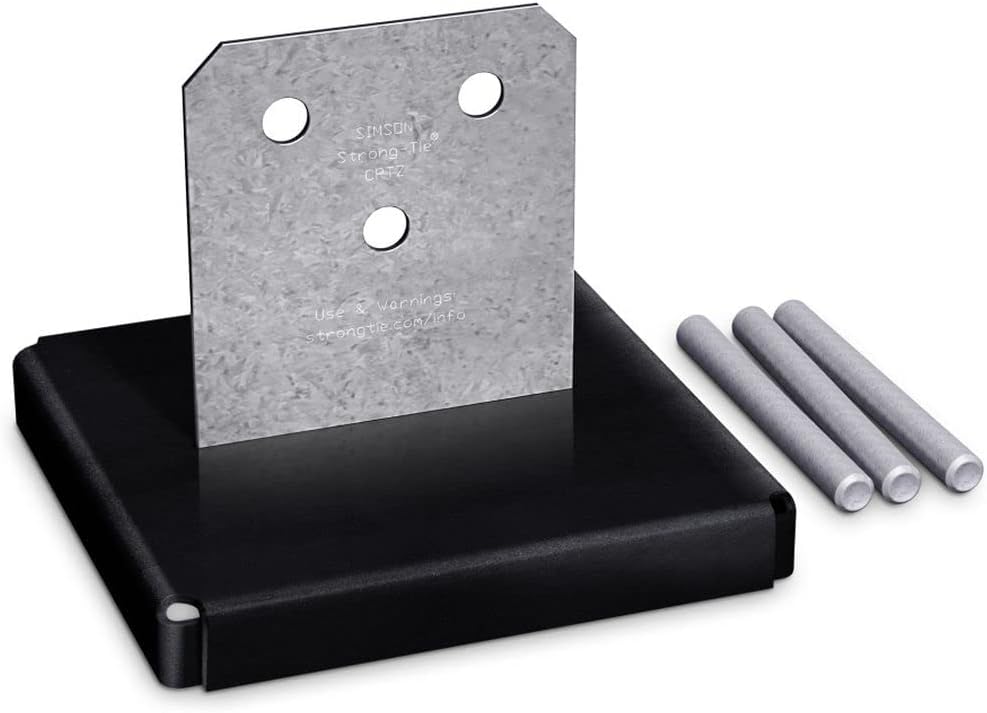

Contents of the CPT88Z Post Base

Included in your order:

1x ZMAX Galvanized 12 Gauge Clearance Base

12-gauge steel support platform with ZMAX galvanized finish and textured black powder coating for superior aesthetics. The robust construction ensures even load distribution and optimal structural stability.

1x Concealed blade, 10 gauge

High-strength, 10-gauge steel blade designed to fit into a 7/8-inch slot cut into the post. The knife-edge design provides an invisible and structurally sound connection, eliminating any visible hardware for a flawless, professional finish.

2x Galvanized wall plugs, 1/2 inch diameter

Mechanically galvanized anchors conforming to ASTM B695 Class 55 for maximum corrosion resistance. 1/2 inch diameter ensures a secure connection between the post and the concealed blade.

Galvanized washers

Load distribution washers are included to complete the installation and ensure a solid and durable connection.

Advantages of the CPT88Z Base

Complete kit ready to install:

Save time and money with all structural components included in a single purchase. No more searching for compatible anchors or suitable washers; Simpson Strong-Tie has thought of everything to simplify your installation.

Unparalleled aesthetic appeal:

Unlike standard bases that expose the hardware, the concealed design of the CPT88Z creates a clean, high-end visual result. Perfect for residential projects where appearance matters as much as structural strength.

Guaranteed compliance with building code:

The built-in 1-inch clearance automatically meets Canadian code requirements for permanent structures exposed to the elements. No additional modifications or raising are necessary; the installation is compliant from the start.

Superior corrosion protection ZMAX:

ZMAX galvanizing offers three times more corrosion protection than standard galvanizing, significantly extending service life in outdoor environments and with pressure-treated wood.

Recommended Additional Accessories

Optimize your investment:

Concrete anchors- Mechanical or chemical anchor bolts recommended for secure fixing to existing concrete (sold separately)

Adjustable post base - Alternative with horizontal adjustment to compensate for variations in anchor position (sold separately)

Joist hangers– To securely fix the joists to the beams and ensure a uniform distribution of loads

First Use

Preparing your new CPT88Z post base:

1. Initial inspection:Check the integrity of all components included in the kit. Ensure that the ZMAX galvanization is uniform and free of damaged areas. Confirm the presence of both galvanized plugs and washers.

2. Measuring and marking the post:Cut a vertical slot 7/8 inch wide and 5 inches deep, centered on the end of the 8x8 post, to accommodate the concealed blade. Use the blade as a template to accurately mark the location of the dowel holes.

3. Positioning and anchoring:Mark the exact location on the concrete slab according to your structural plan. Drill 1/2-inch anchor holes according to the specifications of your chosen anchor manufacturer. Install the mechanical or adhesive anchors as instructed.

4. Assembly and final fixing:Insert the concealed blade into the post slot, position the assembly on the concrete-fixed clearance base, and then install the galvanized anchors with washers to secure the connection. Check the post is plumb before final tightening.

Annual Maintenance

To maximize the lifespan of your CPT88Z post base:

After every Quebec winter:

Visually inspect the base for any signs of surface corrosion or debris buildup below the 1-inch clearance.
Clean the clearance area by removing leaves, soil, and debris that could trap moisture against the wood.
Check the tightness of the galvanized anchors and tighten them if necessary after freeze-thaw cycles.

Inspection of clearance and drainage:

Confirm that the 1-inch gap between the post and the concrete is clear to allow for air circulation and moisture evaporation.
Check that the water drains properly without pooling around the base; adjust the drainage as needed.

Structure verification:

Check the vertical alignment of the post annually and adjust if any slight sagging is detected.
Inspect the condition of the wood at the joint to detect any signs of rot despite the clearance.

Cleaning and Maintenance

Semi-annual cleaning recommended:

Use a stiff brush to remove debris, soil, and dirt buildup from the ZMAX galvanization. Low-pressure water jet cleaning is acceptable for removing dust and surface dirt.

Critical areas to clean:

Clearance space under the post where moisture can accumulate
Textured black powder base surface that can trap dirt
Galvanized anchor connections to check for absence of corrosion

Recommended products:

Mild soapy water and a non-metallic brush are sufficient for most cleaning tasks. Avoid abrasive or acid-based cleaners, which could damage the ZMAX galvanization. Dry the surface after cleaning if possible.

Suggested frequency:Complete cleaning twice a year (spring and autumn) to maintain appearance and corrosion protection.

Precautions for Use

For your safety and the durability of the installation:

Avoid structural overload:Never exceed the maximum loads tested and certified by Simpson Strong-Tie for this base. Consult a structural engineer for non-standard applications or exceptional loads.

Comply with anchoring specifications:Use only 1/2-inch diameter anchors that meet specifications. Undersized anchors will compromise the structure's safety.

Protection against excessive humidity:Although the 1-inch clearance provides protection, avoid installing in areas where water will permanently stagnate. Ensure adequate drainage around each base to maximize lifespan.

Safe handling:Wear work gloves during installation to avoid cuts on the steel edges. Galvanized anchors must be tightened to the recommended torque, but not excessively, as this could damage the wood.

Optimal usage conditions:Designed for temperatures between -40°C and +50°C. ZMAX galvanization protects against corrosion, but continuous exposure to aggressive chemicals can reduce service life.

Storage Tips

Storage prior to installation (short and long term):

Store the CPT88Z bases in a dry, well-ventilated place, away from direct moisture.
Keep the components in their original packaging until installation to protect the galvanization
Avoid direct contact with the ground by storing on pallets or shelves.
Store indoors if possible, or cover with a waterproof tarpaulin if temporarily stored outdoors.

Expected lifespan with proper storage:When kept in suitable dry conditions, the bases can be stored indefinitely without degradation of the galvanization or structural properties.

Simpson Strong-Tie Guaranteed Cover

Warranty period:

Simpson Strong-Tie Manufacturer's Limited Warranty
Lifetime coverage against manufacturing and material defects
The warranty begins on the original purchase date.

What Is Covered

The Simpson Strong-Tie limited warranty covers:

Manufacturing defects:Any defect resulting from manufacturing errors during the production process, including faulty welds, incorrect perforations or inadequate assembly.

Material defects:Steel of inferior quality to specifications, prematurely failing ZMAX galvanization or defective powder coating not conforming to standards.

Abnormal performance:Structural failure of the product when used according to the specifications and loads recommended by Simpson Strong-Tie under normal operating conditions.

What Simpson Strong-Tie will do:

Free repair of defective product
Replacement with an identical or equivalent product
Refund of the purchase price if repair or replacement is impossible

Warranty Exclusions

The warranty does NOT cover:

❌Normal wear and tear:Natural discoloration of the galvanization due to prolonged exposure to the elements, superficial scratches or normal installation marks not compromising structural integrity.

❌Physical damage:Impacts, shocks, bending, twisting or deformation caused by improper handling during transport, storage or installation.

❌Incorrect installation:Failures resulting from installation not in accordance with manufacturer's instructions, use of inadequate anchors, overloading exceeding nominal capacities or modification of the product.

❌Extreme environmental conditions:Continuous exposure to corrosive chemicals, concentrated de-icing salt, prolonged immersion in water or permanent direct contact with the ground.

❌Neglect and lack of maintenance:Lack of periodic inspection, accumulation of debris under uncleaned clearance, or any obvious neglect of basic maintenance.

Complaint Procedure

How to file a claim in 4 steps:

Step 1: Documentation

Keep your original proof of purchase (invoice or receipt)
Take clear photos of the defect or problem you observed.
Note the purchase date, model number (CPT88Z), and the circumstances of the problem.

Step 2: Contact

Polar Industrial Equipment Customer Service (30-day returns):

Telephone: 1-800-567-3206
E-mail :info@equipementpolar.com
Address: 3425 Wilfrid-Hamel Boulevard, Quebec
Hours: Monday to Friday, 8am to 5pm

Simpson Strong-Tie Canada Service (manufacturer's warranty):

Visitwww.strongtie.com/supportto submit a claim online or to obtain the contact information for the Canadian warranty service

Step 3: Evaluation and authorization

Our team or the Simpson Strong-Tie team will evaluate your request within 2 to 5 business days.
A return or replacement authorization will be issued if the claim is approved.
Detailed instructions for return or replacement will be provided

Step 4: Resolution

Return the defective product according to the instructions provided, if necessary.
Receive your replacement or refund within 10 to 15 business days after receipt
No return shipping costs for defects covered by the manufacturer's warranty
