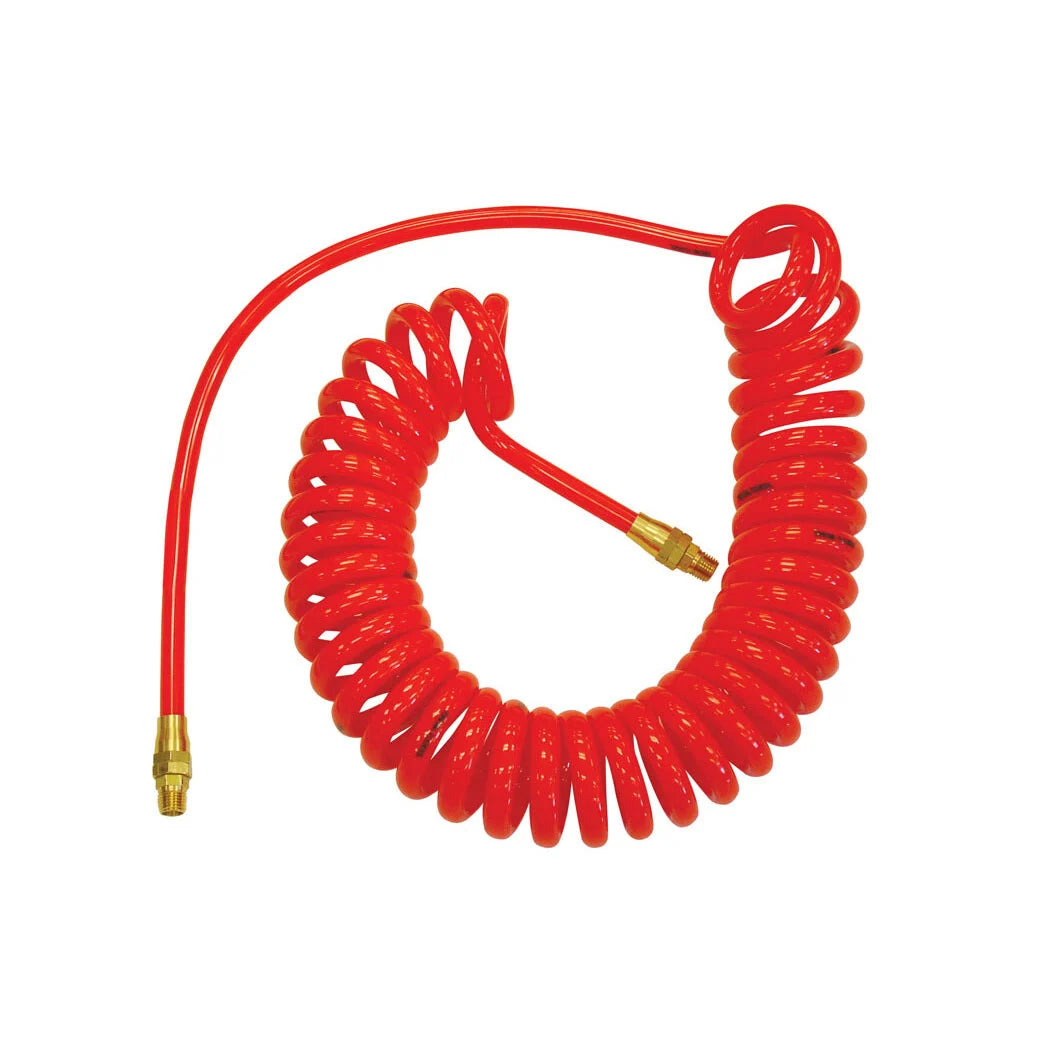

3/8" x 25' Red Topring Inner Tube 17.724

Technical specifications and certifications

• Red color
• Pipe ID: 3/8 in.
• SpiralD.E. : 3.1 in
• Total length: 25 ft
• Use length: 20 ft
• Connections (M): 1/4 NPT
• Maximum operating pressure: 140 PSI at 23°C Operating pressure decreases as the temperature rises
• Operating temperature: -40 to 70°C
• Hardness: 98 Shore A
• Maximum length of use: 80% of the total length

Materials) :
• Polyurethane (ether base)

Features and Benefits

• Ether-based polyurethane properties provide longer life
• Easily extends and automatically retracts
• Excellent memory over a wide temperature range
• Very high resistance to folding
• Very high resistance to abrasion and humidity
• 25% lighter than rubber hoses
• Much more elastic and flexible than nylon hoses
• Smaller spiral diameter for a compact, space-saving design
• Ultra-robust brass fittings
• Leak-proof fittings resistant to loosening caused by vibration
• Full flow swivel fittings allow maximum directional flexibility
• 20-inch and 4-inch end for better ergonomics
• No presence of silicone
