LVAR FOR LOWER SLOPES – SINGLE LEG WITH CARABINER
LVAR FOR LOWER SLOPES – SINGLE LEG WITH CARABINER is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
LVAR FOR LOWER SLOPES – SINGLE LEG WITH CARABINER
Description
Description

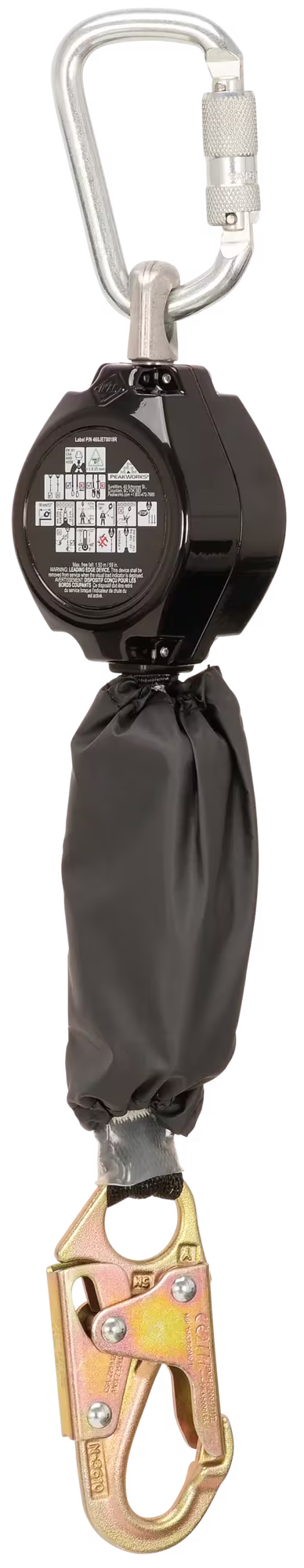

SRL Leading Edge – Single Leg with Carabiner and Pack – 6'
PeakWorks offers a new line of self-retracting lifelines that are third-party certified to the new CSA Z259.2.2 standard for roadside applications and overhead use. Roadside self-retracting lifelines are designed to protect workers working near a curb and at risk of falling. They provide additional protection from sharp or abrasive surfaces found on many construction sites. The lightweight, durable aluminum housing is approved for both vertical and horizontal use. Attachment points include a swivel eye on the housing and dual-action locking carabiners with a fall indicator to connect to the worker's fall arrest D-ring.
- Leading Edge (LE) self-retracting lifelines are designed to protect the worker when working near an edge and when there is a risk of falling that could cause the lifeline to come into contact with the edge.
- Leading Edge SRLs provide additional protection against sharp or abrasive surfaces found on many construction sites
- A Leading Edge SRL can be mounted below a worker's fall arrest D-ring (please refer to the instruction manual for details)
- All LE products are clearly marked to ensure the correct SRL is used for Leading Edge applications
- The anchor point incorporates a sturdy, durable and practical swivel eyelet
| Anchor hook material | Steel |
|---|---|
| Anchor hook type | Carabiner |
| Average arrest force | 4.12 kN (926 lbf) |
| Body hook type | Carabiner |
| Capacity (kg.) | 141 |
| Capacity (lb.) | 310 |
| Standards | CSA Z259.2.2-2017, ANSI Z359.14-2014, Class B |
| Class type | B |
| Gate opening (po) | 3/4 |
| Gate opening (mm.) | 19 |
| Case material | Aluminum |
| At the cutting edge of technology | Yes |
| Leg type | Bachelor |
| Length (ft.) | 6 |
| Length (m.) | 1,828 |
| Lifeline material | Dyneema® |
| Maximum Total Stopping Distance - Application without Leading Edge (in) | 12 |
| Maximum total stopping distance (m) | .31 |
| Minimum Fall Clearance - Application without Leading Edge (ft) | 10 |
| Minimum drop clearance - Leading edge application (pi) | 20 |
| Minimum Ground Clearance - Leading Edge Applications (m) | 6,096 |
| Minimum ground clearance - Application without leading edge (m) | 3,048 |
| Minimum setback distance from edge - Leading edge application (cm) | 30 |
| Minimum Setback Distance from Edge - Leading Edge Application (in) | 12 |
| Rescue and Recovery - SRL-R | No |
| Strap/Cable Thickness (in) | 0.07 |
| Strap/cable thickness (mm.) | 1.75 |
| Strap/Cable Width (in) | 0.8 |
| Strap/cable width (mm.) | 20 |
| Country of origin | Germany |
