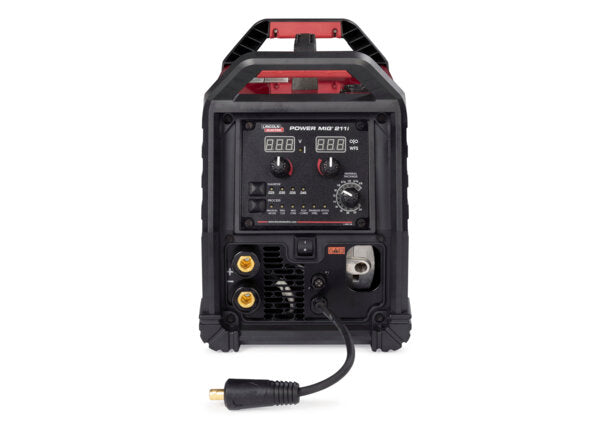

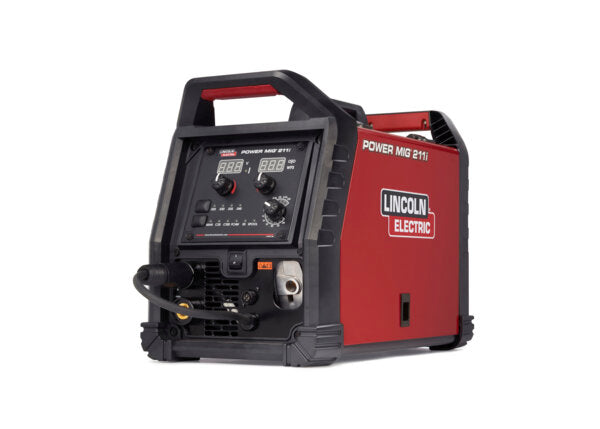

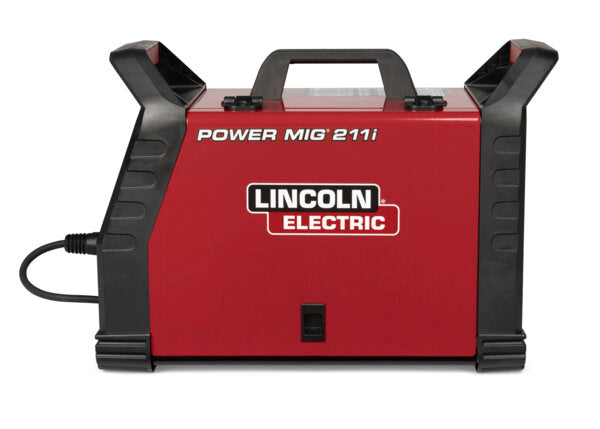

MIG Welder Lincoln Electric POWER MIG 211i K6080-1 120V/230V

POWER MIG 211i Contents

This Lincoln Electric MIG welder ships complete with everything you need to start welding right out of the box. No additional accessories required.

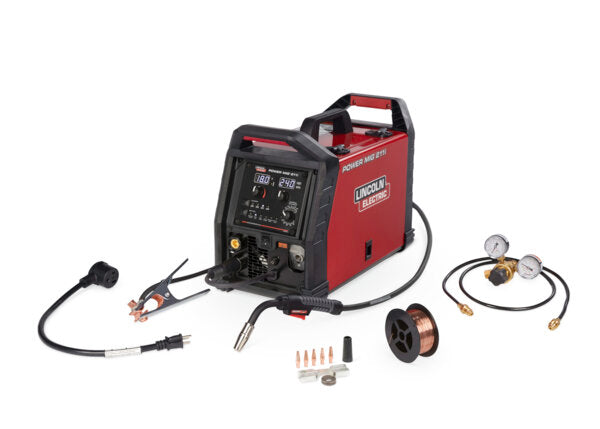

Included in your order:

• 230V-to-120V power cord adapter - Easily switch between both voltages without any modification.
• Work cable and clamp - Workpiece connection included to start immediately.
• Adjustable gas regulator and hose - For MIG welding with shielding gas.
• Gas nozzle - Pre-installed on the welding gun.
• Gun cable liner - Pre-installed to guide welding wire through the gun.
• Spindle adapter - Compatible with different spool types.
• 2 lb spool - SuperArc L-56 MIG wire (EDO30631) - Mild steel MIG wire included to run your first beads.
• 0.030-0.035" drive roll (installed) - Standard diameter for mild steel MIG wire.
• 0.030-0.045" knurled drive rolls - For flux-cored wire without gas.
• 0.025-0.035" wire guide - Precise wire guidance to the gun.

POWER MIG 211i Benefits

Dual voltage 120V/230V: Plug into a standard 120V outlet or an industrial 230V circuit. The included adapter lets you switch without any modification.

Process versatility: MIG with gas, flux-cored without gas, spool gun welding. One machine for all your everyday welding needs.

Portable: At only 41 lbs with multiple lift points, it moves easily around the shop or out in the field.

Quick setup: Three-step installation. Built-in parameter chart to select settings based on metal thickness.

Recommended Accessories

To protect your face while welding, Polar Industrial Equipment offers these Lincoln Electric accessories:

• Lincoln Electric VIKING 3350 Welding Helmet K3034-4 - Auto-darkening, large viewing area. Sold separately.
• Lincoln Electric 1740 Ignition Welding Helmet K4375-3 - Lightweight and economical for occasional welding. Sold separately.
• Welding Gloves - Hand protection for welding work. Sold separately.

First Use

Before welding for the first time, follow these 4 setup steps.

1. Select your voltage: 120V (standard outlet) or 230V with the included adapter. Check that your breaker matches the required amperage.
2. Install the wire spool: Load the SuperArc L-56 spool onto the wire feeder and install the matching drive roll.
3. Set up shielding gas (MIG welding): Connect the included regulator to your CO2 or argon/CO2 cylinder. Recommended flow: 15-25 cfh.
4. Adjust settings: Use the built-in parameter chart inside the machine panel to select voltage and wire speed based on metal thickness.

Regular Maintenance

After each use:

• Remove spatter from the gas nozzle with a wire brush
• Replace the contact tip if the opening is enlarged or irregular
• Cover the machine to protect it from dust and debris

Monthly maintenance:

• Blow out ventilation slots with compressed air (machine unplugged)
• Inspect the power cable for signs of wear or damage
• Check drive rolls - replace if the groove is worn or deformed

Safety Precautions

For your safety:

• Always wear a proper welding helmet - arc light causes severe eye burns
• Weld in a ventilated area - welding fumes are harmful to your health
• Do not use in rain or very damp environments - electric shock hazard
• Keep a fire extinguisher nearby - sparks can ignite combustible materials

Storage

Short-term storage:

• Dry location, temperature between -10C and 40C
• Use a protective cover to prevent dust buildup

Winter storage in Canada:

• Avoid storing below -10C for extended periods
• If exposed to cold, allow 30 minutes at room temperature before use
• Remove the wire spool when storing in damp environments to prevent rust

Polar Industrial Equipment Warranty

Every purchase on equipementpolar.com includes a 30-day satisfaction guarantee. If you are not fully satisfied with your POWER MIG 211i, contact us within 30 days of receiving your order.

Lincoln Electric Warranty

• 3 years on the machine (parts and labour)
• 1 year on the welding gun
• Consumable parts (nozzle, contact tip, drive rolls): not covered

What Is Covered

• Electronic components: Manufacturing defects affecting normal operation.
• Wire feed mechanism: Defects causing irregular or blocked wire feeding.
• Transformer and power: Defects affecting voltage/amperage regulation.
• Case structure: Structural defects not caused by impact or dropping.

Warranty Exclusions

The warranty does NOT cover:

• Consumable parts: Nozzle, contact tip, drive rolls - regular replacement items.
• Physical damage: Drops, impacts, or unauthorized modifications.
• Misuse: Exceeding the duty cycle or using an incompatible voltage.
• Moisture damage: Use or storage in excessively humid conditions.

Claim Process

Step 1: Documentation

• Keep your Polar order confirmation
• Record the serial number (nameplate)
• Document the issue with photos and description

Step 2: Contact

• Phone: 1-800-567-3206
• Email: info@equipementpolar.com
• Address: 3425 Boulevard Wilfrid-Hamel, Quebec
• Hours: Monday-Friday 8am-5pm

Step 3: Return

• Pack in original packaging with proof of purchase
• Obtain an RMA number from our customer service before shipping

Step 4: Processing

• Refunds (30-day guarantee): processed within 5-10 business days
• Manufacturer warranty claims: handled by an authorized Lincoln Electric service centre
