Chicago pneumatic | SKU:
CP-9104Q
Sold out

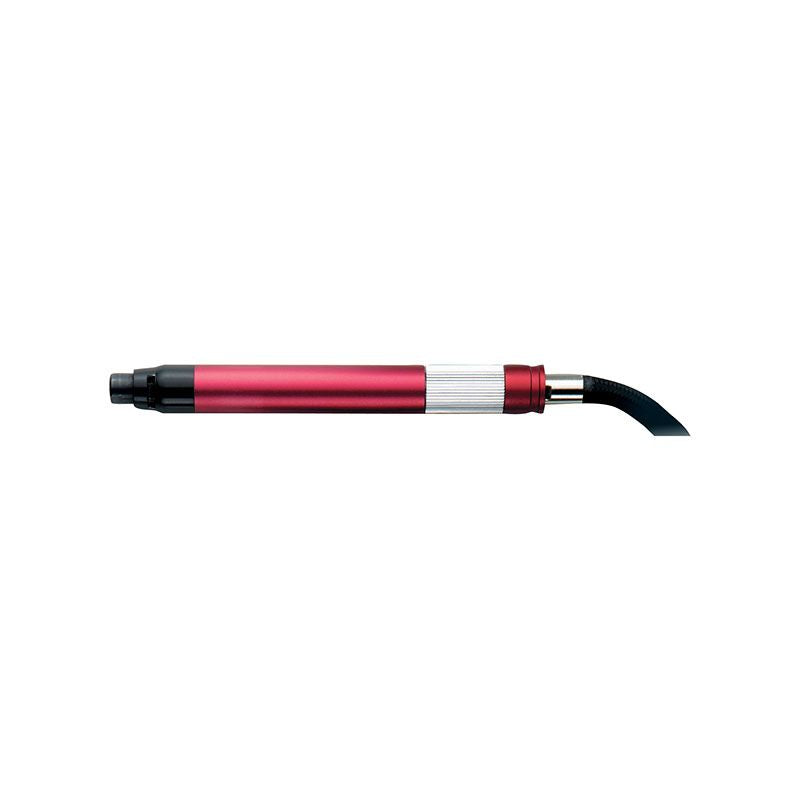

PENCIL GRINDER CP
Regular price
$216.15
Unit price
/
Unavailable
Shipping calculated at checkout.
PENCIL GRINDER CP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
This highly compact straight pencil grinder will fit your tightest applications and guarantee you optimal quality. Its high speed of 60,000 rpm meets your needs when precision is a key factor in your grinding applications. At only 0.2 kg (1/2 lb), it offers optimal user comfort. Available as a standalone tool or in a kit. The country of origin is TW. The customs tariff is 84671110.
Technical specifications
Height and weight
Length (L)
5.24 inches
Weight
0.44 lb
Power supply and battery
Maximum power
0.05 hp
Speed
Free speed
60,000 rpm
Air consumption at free speed
7 cfm
Air information
Air consumption under load
6.8 cfm
Air Inlet Thread Size (in)
1/4
Maximum dynamic air working pressure
90 psi
Minimum pipe diameter (16 foot pipe length)
0.38 in
Minimum pipe diameter (5 m pipe length)
10 mm
Noise and vibrations
Sound power
82 dB(A)
Sound pressure
71 dB(A)
Vibration (m/s²)
<2.5
Tightening strategies
Angle type
Right
Design and functions
Abrasive type
carbide cutter
Maximum clamp capacity
1/8 (3 mm)
Maximum clamp capacity (mm)
3
Exhaust
Back
Governor type
N / A
Main material type
Aluminum
Rotary input
No
Spindle lock
No
Starting system
Rolling Accelerator
Benefits
Very low noise level for greater comfort
High free speed allows for greater accuracy
Muffler pipe included
3mm and 1/8" collets included
Lightweight for great maneuverability
